Front

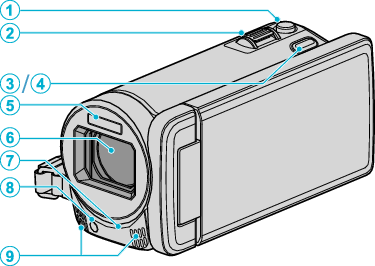

Names of Parts
Front
SNAPSHOT (Still Image Recording) Button
Takes a still image.
Zoom/Volume Lever
During shooting: Adjusts the shooting range.
During playback (index screen): Moves to the next or previous page.
During video playback: Adjusts the volume.
3D Button (for GZ-HM960)
Switches the playback image and display on the LCD monitor between 3D and 2D.
AF Button (for GZ-HM845)
Automatically adjusts focus and brightness based on the subjects’ faces or selected area.
Flash
Lens/Electric Lens Cover
Do not touch the lens and lens cover.
Do not cover the lens with your fingers during recording.
Remote Sensor (for GZ-HM960)
Light
Turn on the light when shooting in dark places.
Stereo Microphone
Do not cover the microphone with your fingers during video recording.
