Preparing a BD Writer (External Blu-ray Drive)

Memo

When connecting this unit to the BD writer (external Blu ray drive), use an Mini-A (male) - B (male) USB conversion cable. Please note that the supplied USB cable cannot be used for this purpose.

(Part number: QAM0852-001) * Mini-A (Male) – A (Female) *Consult your nearest service center.

Remove the AC adapter and battery pack from this unit.

Connect the USB cable and the AC adapter.

C3B BDBurner1 AP-V30

Connect the USB cable of the BD writer (external Blu-ray drive) to this unit.

The USB cable provided with this unit cannot be used.

Connect the AC adapter of the BD writer (external Blu-ray drive).
Turn on the BD writer (external Blu-ray drive).
Connect the AC adapter to this unit.

Refer also to the instruction manual of the BD writer (external Blu-ray drive).

Open the LCD monitor.

C2B3_Common_Monitor_Open

This unit turns on and the “BACK-UP” menu appears.

While the USB cable is connected, the “BACK-UP” menu is displayed.

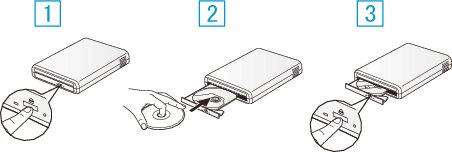

Insert a new disc.

DVDセット（BD）
Press the eject button to open the disc tray.
Load a new disc properly.
Press the eject button to close the disc tray.

Caution

Be sure to turn off the power when connecting the devices.
Otherwise, electric shocks or malfunctions may occur.
