Adjusting Focus Manually

Set this when the focus is not clear in Intelligent Auto or when manual focusing is desired.

01

Select the Manual recording mode.

Tap MENU_iA
  • If the mode is iA Intelligent Auto, tap iA on the recording screen to display the mode switching screen.
    Tap MANUAL_MODE to switch the recording mode to Manual.
Tap Auto&Manua
02

Tap “MENU”.

Tap MENU
  • The shortcut menu appears.
03

Tap “MENU” in the shortcut menu.

MENU OTHERS
04

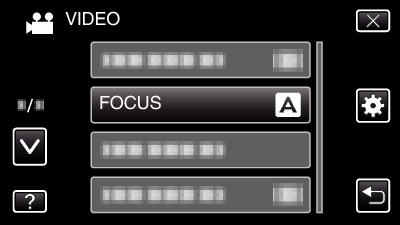

Tap “FOCUS”.

FOCUS
  • Tap Cursor_Up or Cursor_Down to move upward or downward for more selection.
  • Tap batsu to exit the menu.
  • Tap RETURN to return to the previous screen.
05

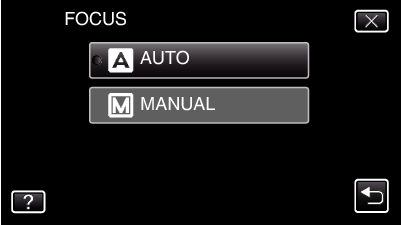

Tap “MANUAL”.

FOCUS1
06

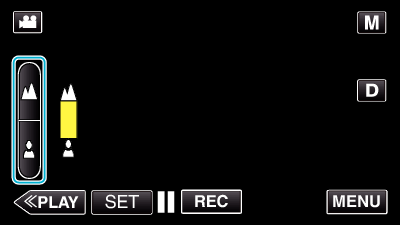

Adjust the focus.

FOCUS2
  • Tap FOCUS_FAR to focus on a distant subject.

    If FOCUS_FAR appears blinking, focus cannot be set any further.
  • Tap FOCUS_NEAR to focus on a near subject.

    If FOCUS_NEAR appears blinking, focus cannot be set any nearer.
07

Tap “SET” to confirm.

FOCUS3
  • When focus is confirmed, the focusing frame disappears and FOCUS_FAR and FOCUS_NEAR are displayed.
Memo
  • A subject that is focused at the telephoto (T) end remains in focus when it is zoomed out to the wide angle (W) end.
