Camera Setup for Network Connection

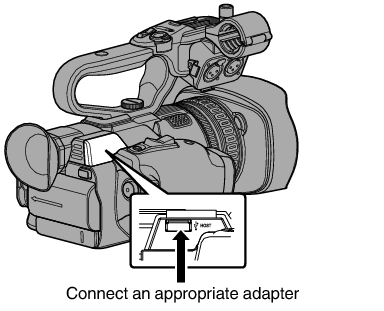

Connect an appropriate adapter according to the intended use to the [HOST] terminal at the side terminal section of the camera recorder.

The following adapters can be connected.

Wireless LAN adapter

Ethernet adapter

Cellular adapter

GY-HM200_NetworkConnect
Memo

Only a network connection adapter can be connected to the [HOST] terminal.

Connect or disconnect an adapter only after you have turned off the power of the camera recorder.

You can find the latest information on the compatible adapters at the product page of our website.

Two types of network coverage (WAN and LAN) are available for each application.

Enable the network connection.

Set [Main Menu] arrowR [System] arrowR [Network] to “On”.

Configure the connection settings.

Select [Main Menu] arrowR [System] arrowR [Network]/[Settings] arrowR [Connection Setup] arrowR [Wizard] and press the Set button ( REC button ).

A wizard screen appears according to the type of adapter connected. Follow the instructions on the screen to perform setting.
