About the JVC Headphones App

The app will be explained using the English version of the app screen.

Downloading the Earphone App

By installing the dedicated app (free), you can check the status of the headphones and make changes to various settings.

Download the app from the App Store for iPhone or Google Play for Android™.

Store_JVC_logo
Icon_App_Store_U
Icon_Google_Play_U_2023

NOTE

The supported OS versions are iOS 14 to 18 and Android 8 to 16.

The display may vary depending on the app version and your smartphone.

Open the app while connected to the Internet.

We recommend using the app in a Wi-Fi or high-speed data communication environment.

Refer to App Compatible Model ＞＞ for the compatible models.

Connecting to the App

  1. Pair the headphones and your smartphone.

    2. Refer to “Pairing (Registering a device)” in the “User manual” for each model.

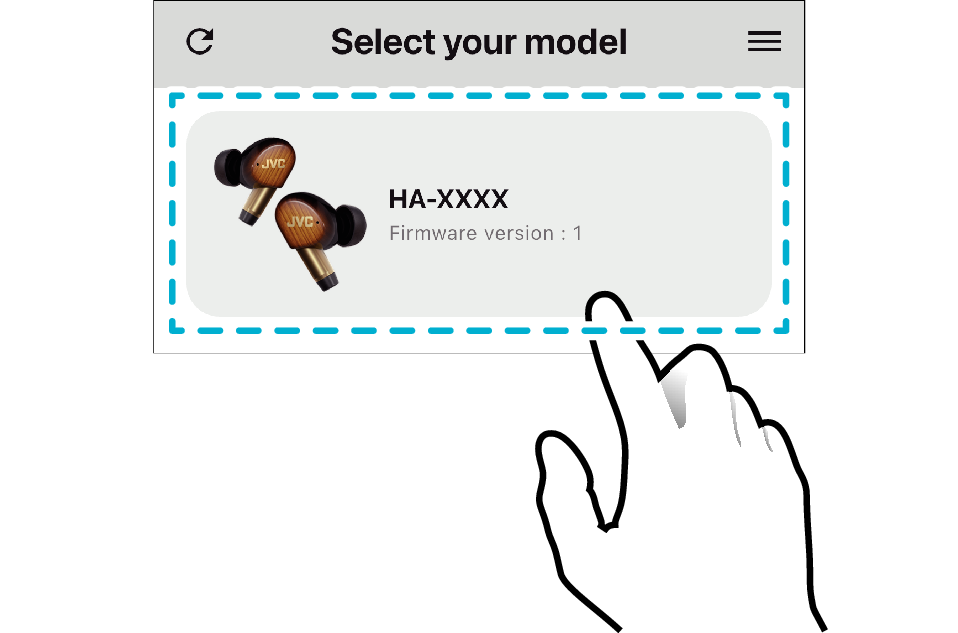

  2. Open the app and select your headphones on the model selection screen.

    3. If you are using the iOS version, turn on only the headphones you are using.

    JVC_Headphones_App_Selecting_Model_U_FW5100T

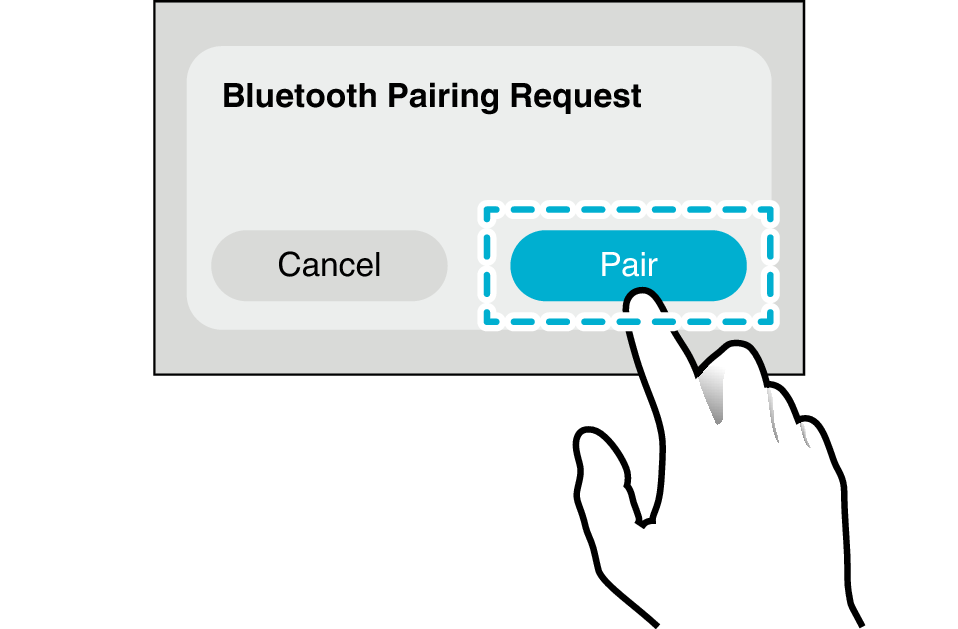

    The following message may appear when you open the app. Select “OK” or “Allow” when using the app.

    iOS

    "JVC Headphones" Would Like to Use Bluetooth

    Android

    Allow JVC Headphones to find, connect to, and determine the relative position of nearby devices?

    The displayed content may vary depending on your smartphone and OS version.

NOTE

Tap the Update button at the top left of the “model selection screen” in the app.

If the headphones are not displayed or the main screen is not displayed, operate as follows.

For wireless earphones

  1. Close the app.

  2. Insert the headphones to the charging case and wait about 30 seconds.

  3. Remove L (left) and R (right) from the charging case and connect them to your smartphone.

  4. Open the app and select the headphones.

For wireless headphones

  1. Close the app.

  2. Turn off the headphones, and wait for 30 seconds.

  3. Turn on the headphones, and connect to your smartphone.

  4. Open the app and select the headphones.

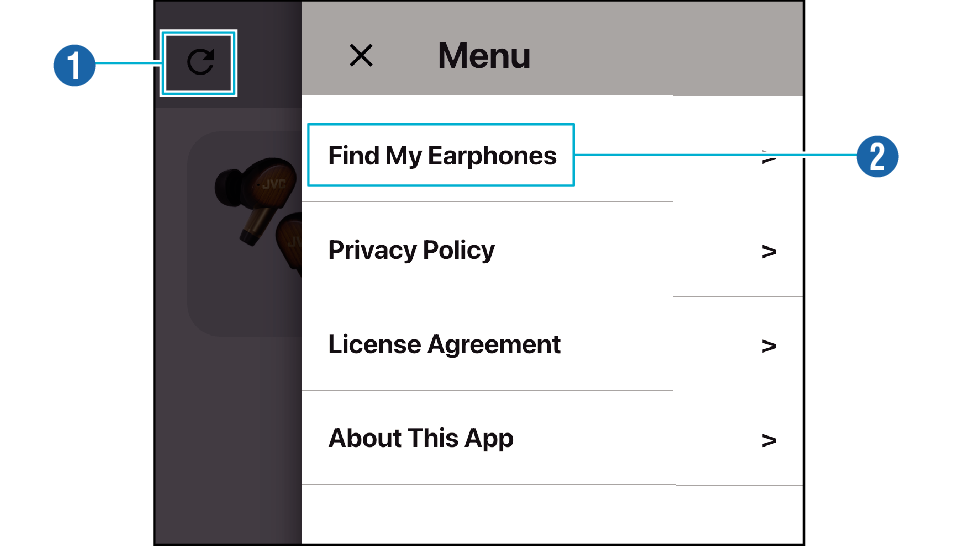

Selection Screen

JVC_Headphones_App_011_Select_U_FW5100T

  1. Update button

    2. Pressing the Update button begins a new search for nearby earphones.

  2. Find My Earphones

    3. A “Find My Earphones” feature is available in the menu (*Only supported in the iOS app).

    For earphones that have been connected to the JVC Headphones app before, you can check the last location where they were connected to the smartphone on the map app.

Main Screen

The contents displayed differ depending on the model.

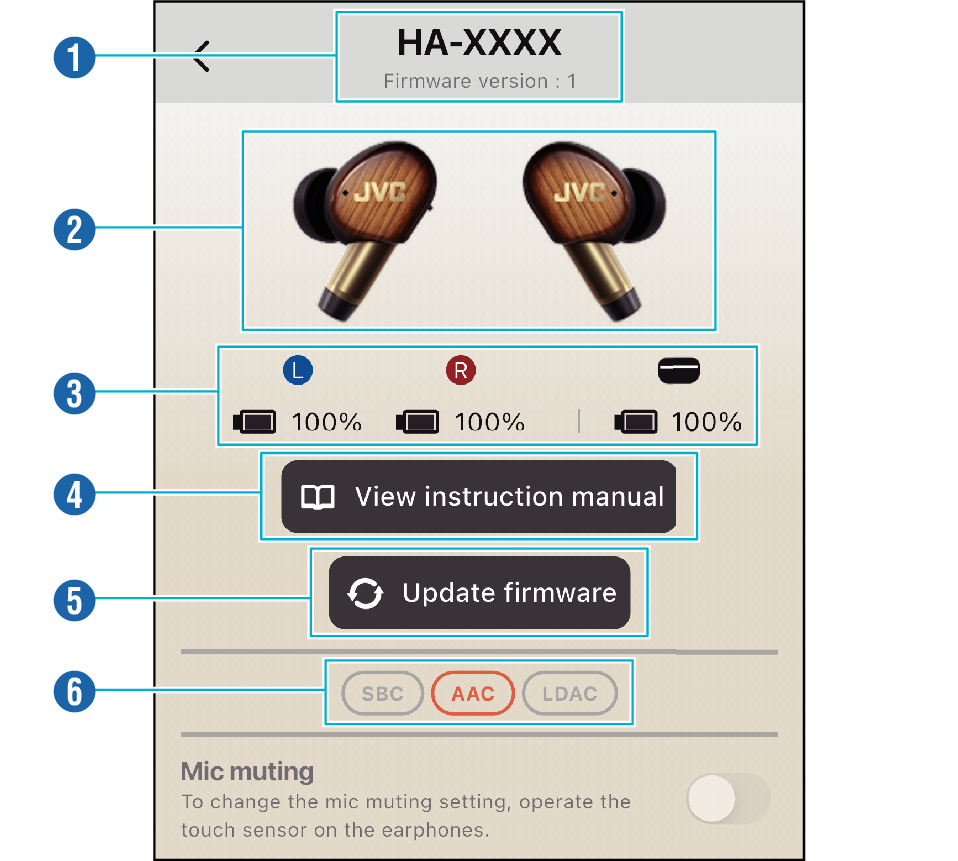

Status Display

JVC_Headphones_App_001_Status_U_FW5100T

  1. Model Name / Firmware Version

    2. Displays the model name and the firmware version of the headphones.

  2. Product Color Change

    3. If the product has multiple colors, tap to change the color of the image.

  3. Battery Level

    4. Displays the remaining battery power.

    The battery level of the charging case is displayed based on the value at the time the earphones are removed from the charging case.

    The displayed value is only an approximate indication of the actual remaining battery level. Please use it as a rough estimate.

  4. View instruction manual

    5. Tap to view the “User manual”. Click here for the detailed instructions on how to use the headphones.

  5. Update firmware

    6. Refer to Main Unit Firmware Update ＞＞.

  6. Codec

    7. Displays the codec during music playback.

    The playback codec is displayed in orange.

    The bit rate and sampling rate are displayed for some models.

Volume Setting

You can adjust the volume during music playback, volume of voice during phone call, and volume of music during Touch & Talk.

The screenshot is intended for illustration purposes.

JVC_Headphones_App_002_Volume_Ver1_U_A30T2

Various Settings

You can make changes to the various settings.

For details on “Suppress indicator” and “Suppress prompt”, refer to the “User manual” of each model.

The screenshot is intended for illustration purposes.

JVC_Headphones_App_003_Various_Ver1_U_A30T2

Some models allow the settings for NC (Noise Cancellation)/Ambient Sound and control key switching to be altered.

JVC_Headphones_App_009_NC_TaT_U_A30T2
JVC_Headphones_App_010_NC_TaT_AS_S95N_U

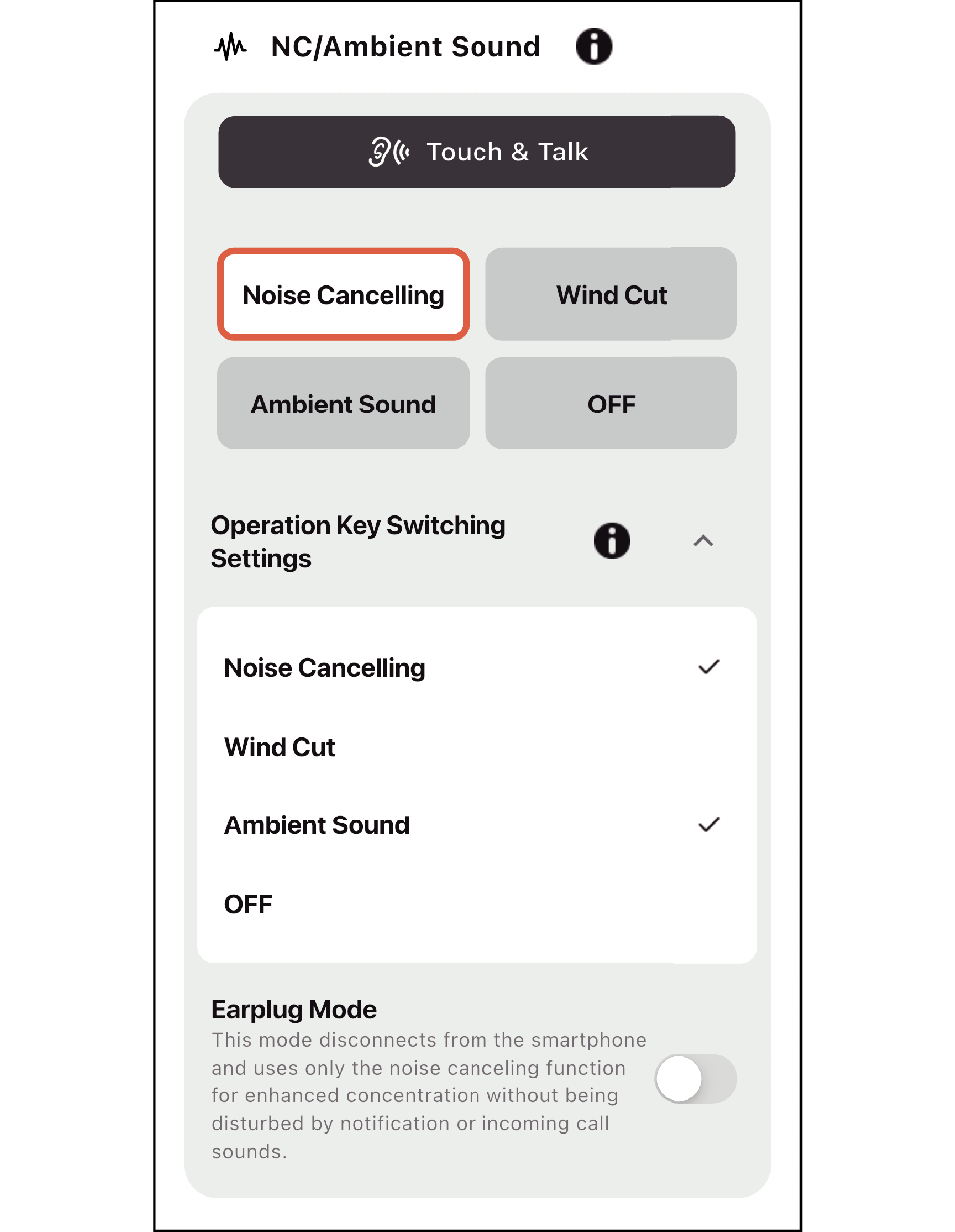

Some models allow the ANC mode (Ambient Sound) settings and On/Off settings of the Earplug Mode to be altered.

JVC_Headphones_App_012_ANC_Earplug_U_FW5100T

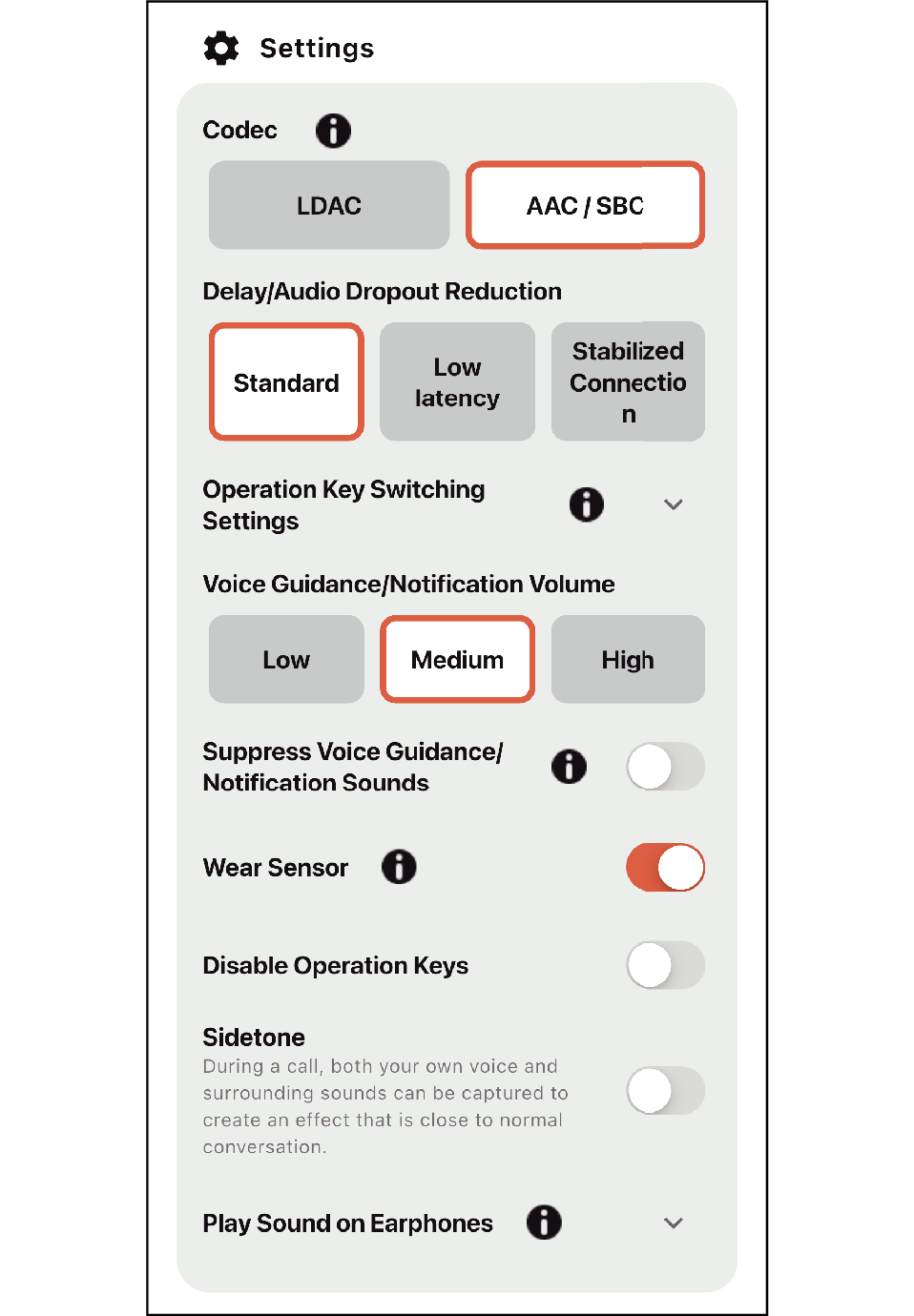

For some models, you can change volume settings for the voice guidance and notification sounds, On/Off settings of the wear sensor, settings for disabling the operation buttons, and setting for enabling Play Sound on Earphones.

JVC_Headphones_App_015_Setting_U_FW5100T
Victor_Headphones_App_Blank_Line

Settings Compatibility Chart by Model (Icon_Check_Mark: supported; -: not supported)

Setting Item

HA-NP50T

HA-NP1T

HA-A30T2

Touch & Talk

-

Icon_Check_Mark

Noise canceling

-

Icon_Check_Mark

Wind Cut

-

Icon_Check_Mark

Suppress indicator

Icon_Check_Mark

Icon_Check_Mark

Suppress prompt

Icon_Check_Mark

Icon_Check_Mark

Disable touch key

Icon_Check_Mark

Icon_Check_Mark

Sidetone

-

Icon_Check_Mark

Low latency mode

Icon_Check_Mark

Icon_Check_Mark

Setting Item

WOOD masterpiece

Touch & Talk

Icon_Check_Mark

Noise canceling

Icon_Check_Mark

Wind Cut

Icon_Check_Mark

Ambient Sound

Icon_Check_Mark

Suppress indicator

-

Sidetone

Icon_Check_Mark

Suppress Voice Guidance/Notification Sounds

Icon_Check_Mark

Disable Operation Keys

Icon_Check_Mark

Codec

Icon_Check_Mark

Earplug Mode

Icon_Check_Mark

Delay/Audio Dropout Reduction

Icon_Check_Mark

Voice Guidance/Notification Volume

Icon_Check_Mark

Wear Sensor

Icon_Check_Mark

Play Sound on Earphones

Icon_Check_Mark

Checking and Switching between Connected Devices

Icon_Check_Mark

Find My Earphones

Icon_Check_Mark

Setting Item

HA-S95N

HA-S75N

HA-Z76N

HA-S59W

Touch & Talk

-

-

-

Noise canceling

Icon_Check_Mark

Icon_Check_Mark

-

Wind Cut

Icon_Check_Mark

-

-

Ambient Sound

Icon_Check_Mark

Icon_Check_Mark

-

Suppress indicator

Icon_Check_Mark

Icon_Check_Mark

Icon_Check_Mark

Suppress prompt

Icon_Check_Mark

Icon_Check_Mark

Icon_Check_Mark

Disable touch key

-

-

-

Sidetone

Icon_Check_Mark

Icon_Check_Mark

-

Low latency mode

-

-

Icon_Check_Mark

Sound Settings

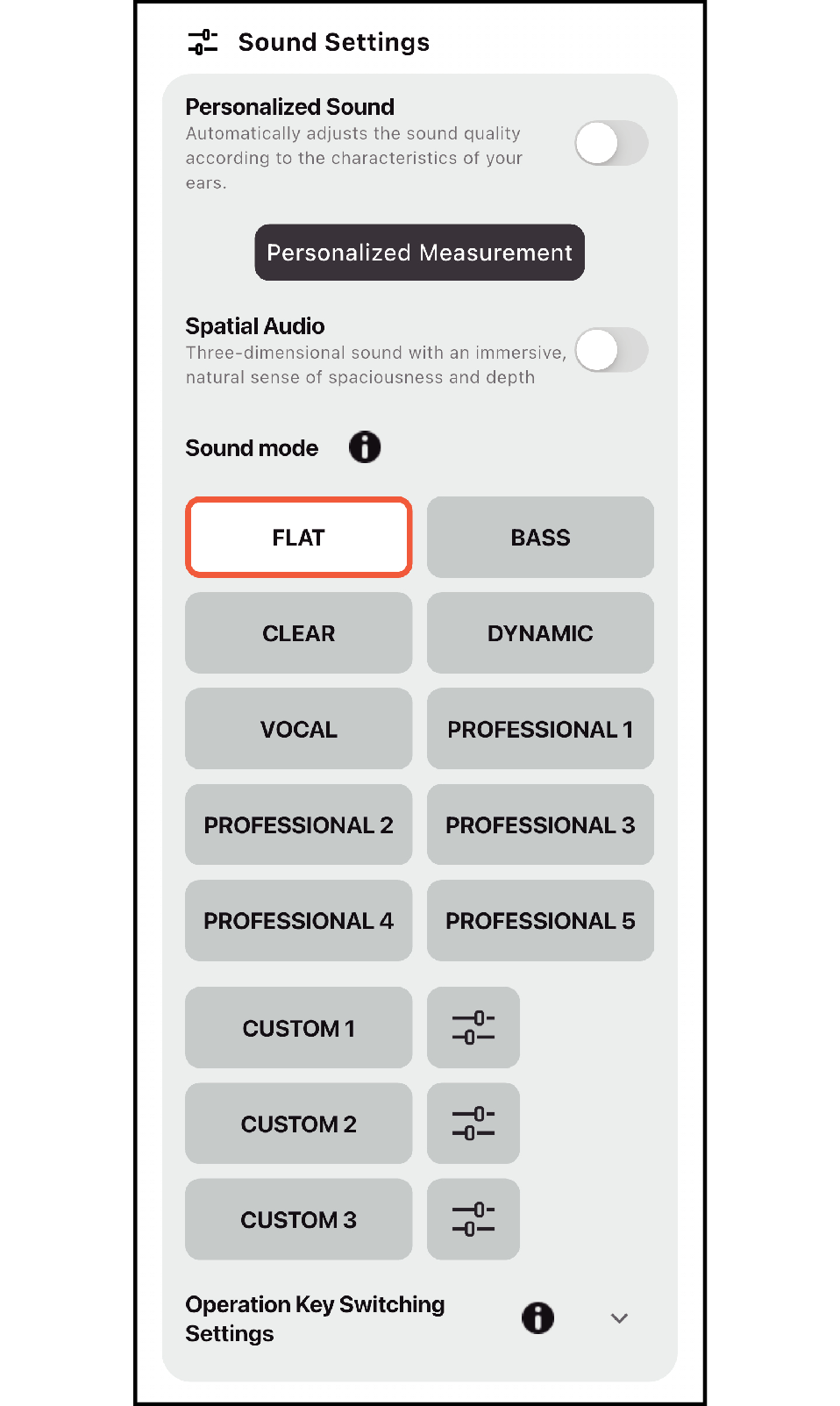

On some models, you can switch the Personalized Sound setting to on or off, perform Personalized Measurement, and configure Spatial Audio settings.

JVC_Headphones_App_004_3_Personalized_Measurement_U_FW5100T

Some models allow the settings for switching the control key of the sound mode to be altered.

Tapping the “CUSTOM 1” ~ “CUSTOM 3” settings button displays the setting screen for the customized equalizer.

Some of the sound modes and CUSTOM may not be supported on some models.

The screenshot is intended for illustration purposes.

JVC_Headphones_App_004_1_Sound_Ver1_U_A30T2
JVC_Headphones_App_004_2_Sound_Ver1_U_A30T2

Example of Screen upon Tapping the “CUSTOM 1” Settings Button

Victor_Headphones_App_Blank_Line

Sound Mode Compatibility Chart by Model (Icon_Check_Mark: supported; -: not supported)

Setting Item

HA-NP50T

HA-NP1T

HA-A30T2

FLAT

-

Icon_Check_Mark

NORMAL

Icon_Check_Mark

-

HIGH

Icon_Check_Mark

-

BASS

Icon_Check_Mark

Icon_Check_Mark

CLEAR

-

Icon_Check_Mark

CUSTOM 1

-

Icon_Check_Mark

CUSTOM 2

-

Icon_Check_Mark

CUSTOM 3

-

Icon_Check_Mark

Setting Item

WOOD masterpiece

FLAT

Icon_Check_Mark

NORMAL

-

HIGH

-

BASS

Icon_Check_Mark

CLEAR

Icon_Check_Mark

DYNAMIC

Icon_Check_Mark

VOCAL

Icon_Check_Mark

PROFESSIONAL 1

Icon_Check_Mark

PROFESSIONAL 2

Icon_Check_Mark

PROFESSIONAL 3

Icon_Check_Mark

PROFESSIONAL 4

Icon_Check_Mark

PROFESSIONAL 5

Icon_Check_Mark

CUSTOM 1

Icon_Check_Mark

CUSTOM 2

Icon_Check_Mark

CUSTOM 3

Icon_Check_Mark

Setting Item

HA-S95N

HA-S75N

HA-Z76N

HA-S59W

FLAT

Icon_Check_Mark

Icon_Check_Mark

NORMAL

-

-

HIGH

-

-

BASS

Icon_Check_Mark

Icon_Check_Mark

CLEAR

Icon_Check_Mark

Icon_Check_Mark

CUSTOM 1

Icon_Check_Mark

-

CUSTOM 2

Icon_Check_Mark

-

CUSTOM 3

Icon_Check_Mark

-

DYNAMIC

-

Icon_Check_Mark

VOCAL

-

Icon_Check_Mark

CUSTOM

-

Icon_Check_Mark

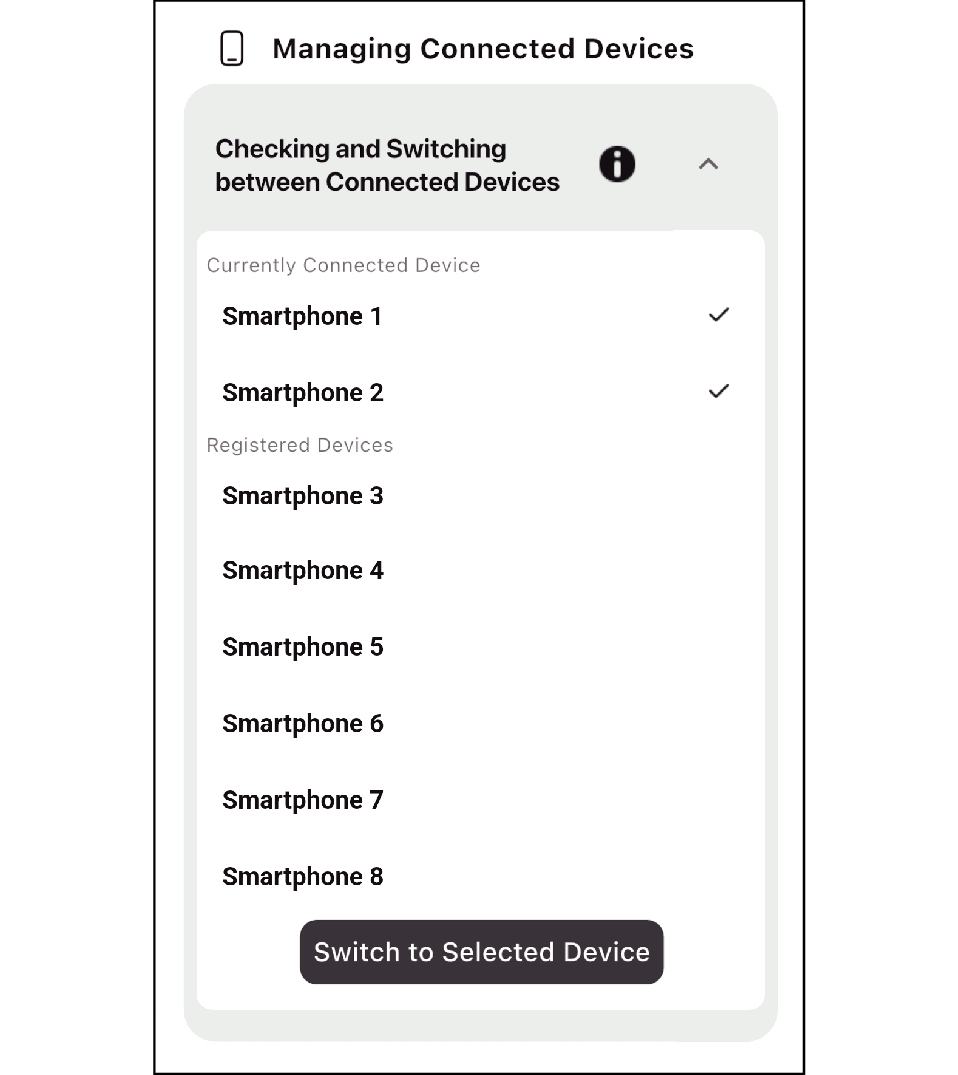

Managing Connected Devices

You can switch between connected devices.

JVC_Headphones_App_App_013_Managing_Devices_U_FW5100T

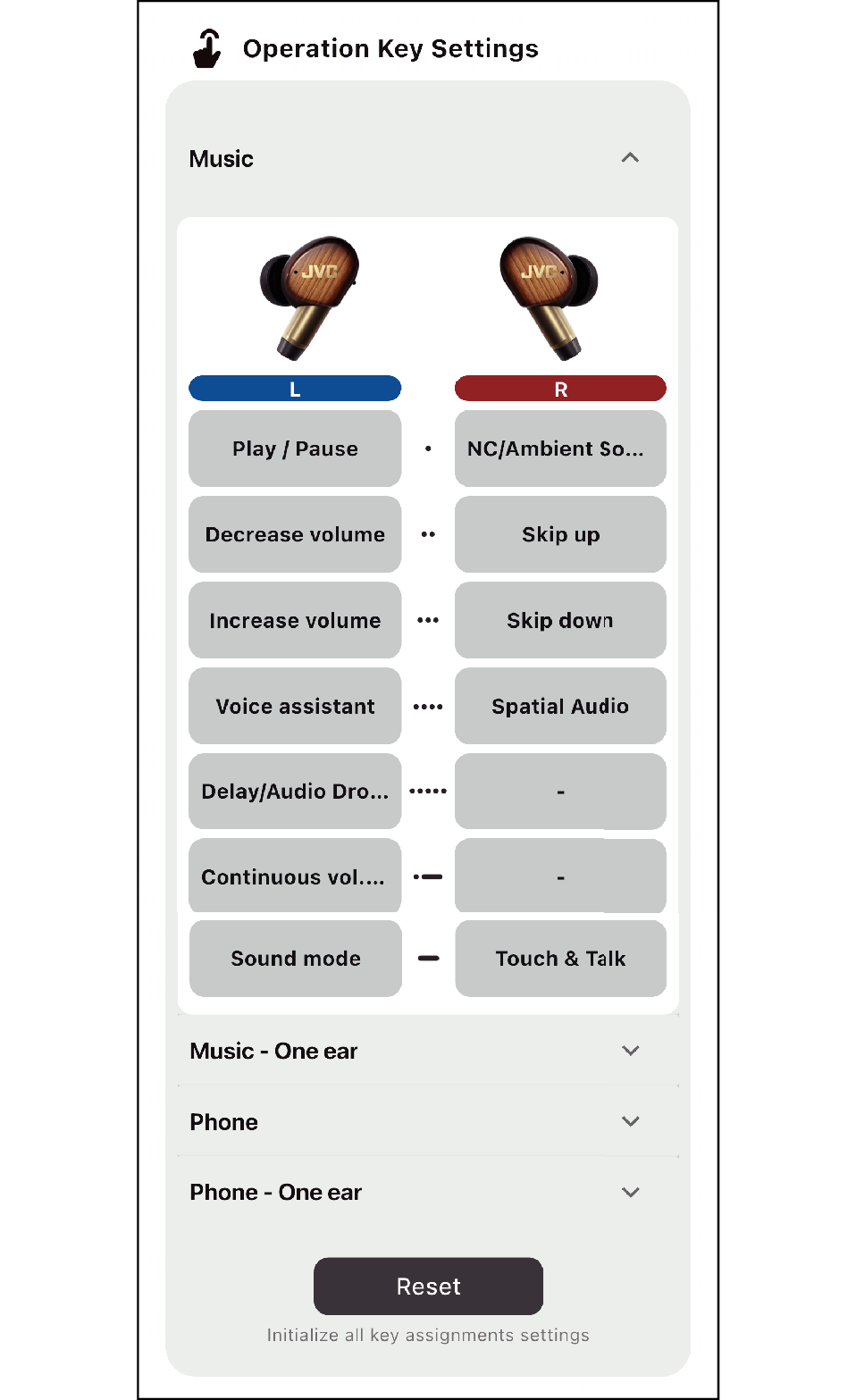

Operation Key Settings

You can change the operation allocation of each function.

The screenshot is intended for illustration purposes. Some functions may not be available depending on the model in use.

JVC_Headphones_App_008_Operation_Key_U_FW5100T

Other Settings

For submitting image information to JVCKENWOOD Corporation.

If you not submitting, turn it off.

JVC_Headphones_App_005_Others_U

Main Unit Firmware Update

If there is new firmware update available for your headphones, the update button is displayed in orange.

For the update history of the main unit firmware, refer to “Others” in the “User manual” of each model.

CAUTION

The update may take up to 30 minutes.

Make sure your smartphone is connected to a power source.

Be sure to observe the following precautions during the update.

Do not press the home button or return to the home screen.

Do not close the app.

Do not start or switch to other applications.

Do not turn off the headphones and your smartphone.

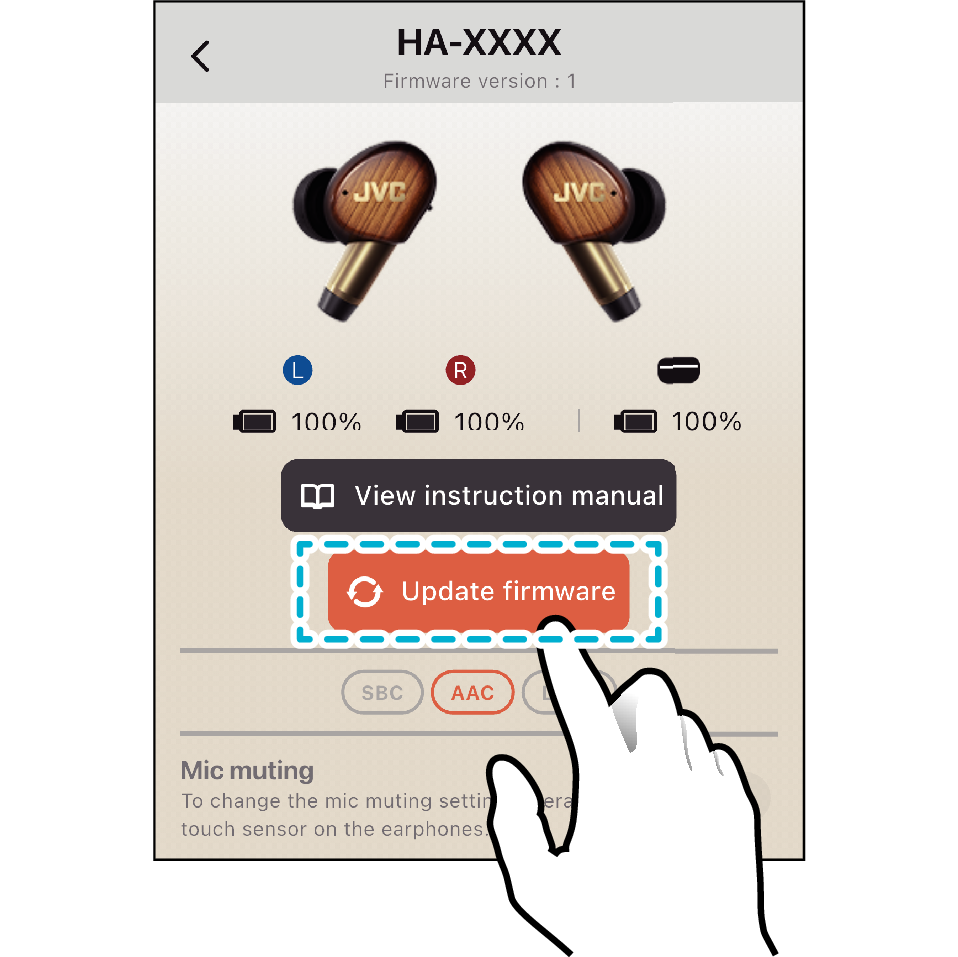

  1. Tap the Update firmware button and follow the on-screen instructions to update the firmware.

    2. JVC_Headphones_App_006_Update_U_FW5100T

NOTE

Updating wireless headphones

If the update fails or is interrupted, the headphones may not work properly. Perform the steps below to update again.

  1. Open the app and run the update.

Victor_Headphones_App_Blank_Line

If the update fails multiple time, perform the steps below to update again.

  1. Initialize the headphones.

    2. For instructions on how to initialize, refer to the Web Manual for each model.

  2. Delete the app from your smartphone, and install the app again.

App Compatible Model

List of compatible model:

HA-NP50T

HA-A30T2

HA-NP1T

WOOD masterpiece

HA-S95N

HA-S75N

HA-Z76N

HA-S59W
