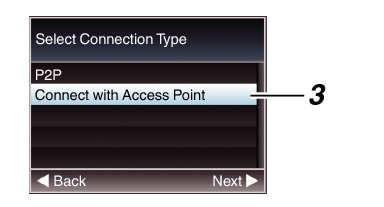

Select “Connect with Access Point”.
Connecting via Wireless LAN
Connection via Access Point
Perform setting on the camera recorder, and start up the [Wizard] screen.

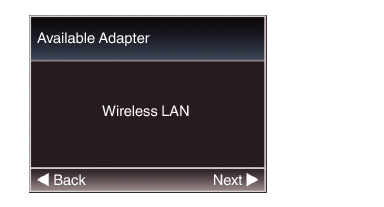

[Wireless LAN] appears on the [Wizard] screen.
Press the
button to display the [Select Connection Type] screen.
button to display the [Select Connection Type] screen.Follow the screen instructions to complete setting. Perform setting for the following.
Mode of connection
Method of setting
* SSID, type of encryption, Passphrase, and IP Address setting (“DHCP” or “Manual”) in cases other than WPS
Setting is complete.
After setting is complete, you can access the camera recorder via a web browser.
P2P Connection
You can access the web function of this camera recorder from devices such as a smartphone, tablet terminal, or PC.
[Wireless LAN] appears on the [Wizard] screen.
Press the button to display the [Select Connection Type] screen.

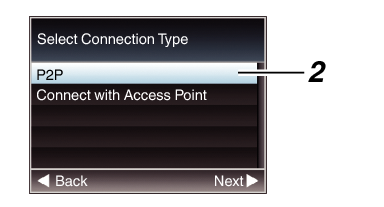

button to display the [Select Connection Type] screen.Select “P2P”.
Follow the screen instructions to complete setting.
Perform setting for the following.
Mode of connection
Method of setting
* SSID and Passphrase in cases other than WPS
Memo
When “WPS” is selected in the [Select Setup Type] screen, the following steps
and
are not required.

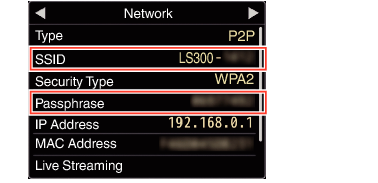

Set the camera recorder to the Camera mode, and display the [Network] (status) screen.
Press the [STATUS] button on the camera recorder to display the status screen.
Press the cross-shaped button (
) to display the [Network] screen.
Check to ensure that the [SSID] and [Passphrase] that you have set in the wizard are displayed.
Select [SSID] from the list of access points (smartphone, tablet terminal, PC, etc.), and enter [Passphrase].
Display the list of access points in the wireless connection settings of the smartphone, tablet terminal, or PC, and select “LS300-*****”. (***** are numbers that vary with the device used.)

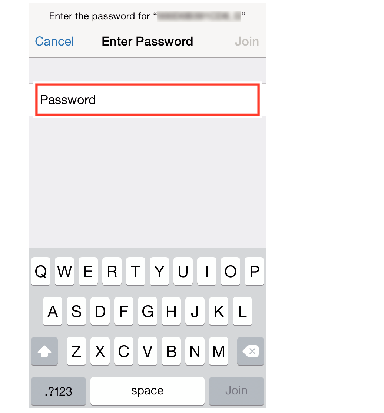

After the password confirmation screen appears, enter the [Passphrase] displayed on the [Network] screen.
Setting is complete.
After setting is complete, you can access the camera recorder via a web browser.
