Specifications

Power

DC 12 V

Power consumption

Mass

Approx. 1.7 k (with battery)

Allowable operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Allowable operating humidity

30 %RH to 80 %RH

Allowable storage temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Dimensions (W × H × D)

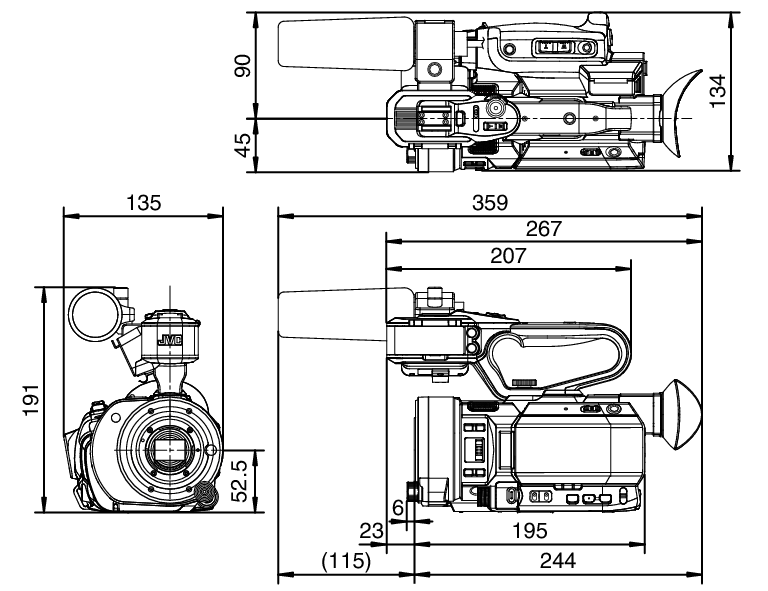

135 mm × 191 mm × 359 mm

[SDI OUT] terminal (480i or 576i: Downconverted 720p/1080i/1080p: embedded audio), BNC (unbalanced)

3G-SDI

Compliant with SMPTE ST424

HD-SDI

Compliant with SMPTE ST292

SD-SDI

Compliant with SMPTE ST259

[HDMI] Output Terminal (Type A)

V1.4-compliant

[INPUT1/INPUT2] terminal

[LINE]

+4 dBu, 10 k , XLR (balanced)

[MIC]

-50 dBu, 4 k , XLR (balanced),
+48 V output (phantom power supply)

[AUX] terminal

Φ3.5 mm stereo mini jack
-22 dBu 10 k

[AV] terminal

Φ3.5 mm 4-pin mini jack

Video signal

1.0 V (p-p)

Audio signal

-8 dBu (during reference level input), 1 k (unbalanced)

[ ] terminal

Φ3.5 mm stereo mini jack

Output

-18 dBu, 16 load (reference level at -20 dBFS, and at maximum headphone volume)

[REMOTE] terminal

Φ2.5 mm wired remote control

[ ] terminal

[DEVICE]

Mini USB-B type, USB 2.0, slave function (mass storage class) only

[HOST]

USB-A type, USB2.0, network connection function only

Lens mount terminal

11 pins, Micro Four Thirds standard

[DC] terminal

For use with the supplied AC adapter

Image pickup device

Super 35 mm Progressive CMOS

Sync system

Internal sync (built-in SSG)

Optical filter

OFF, 1/4, 1/16, 1/64

Gain

0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux (30dB, 36dB), AGC

Electronic shutter

1/6 to 1/10000, EEI

LCD monitor

3.5-inch LCD, 16:9 920K pixels

Viewfinder

0.24-inch LCOS, 16:9 1.56M pixels (960 x 540 x 3)

Supported media

SDHC/SDXC

Slots

x 2

Recording time

Approx. 25 minutes (8 GB SD card, 35 Mbps, VBR mode)

4K mode

Recording file format

QuickTime File Format

Video

MPEG-4 AVC/H.264 150 Mbps (Max) 3840x2160/29.97p, 25p, 23.98p

Audio

LPCM 2ch, 48 kHz/16 Bit

HD mode (QuickTime)

Recording file format

QuickTime File Format

Video

YUV422 mode, XHQ mode

MPEG-4 AVC/H.264 50 Mbps (Max) 1920x1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p

UHQ Mode

MPEG-4 AVC/H.264 35 Mbps (Max) 1920x1080/59.94i, 29.97p, 23.98p, 50i, 25p
1280x720/59.94p, 50p

Audio

LPCM 2ch, 48 kHz/16 Bit

HD mode (AVCHD)

Recording file format

AVCHD File Format

Video

HQ mode

MPEG-4 AVC/H.264 28 Mbps (Max) 1920x1080/59.94p, 50p
MPEG-4 AVC/H.264 24 Mbps (Max) 1920x1080/59.94i, 50i

SP mode

MPEG-4 AVC/H.264, 17 Mbps
1920x1080/59.94i, 50i

Audio

Dolby Digital 2ch, 48 kHz/16 Bit, 256 kbps

SD mode (QuickTime)

Recording file format

QuickTime File Format

Video

MPEG-4 AVC/H.264, 8 Mbps
720x480/59.94i (U model only),
720x576/50i (E model only)

Audio

LPCM 2ch, 48 kHz/16 Bit

SD mode (AVCHD)

Recording file format

AVCHD File Format

Video

MPEG-4 AVC/H.264, 8 Mbps
720x480/59.94i (U model only),
720x576/50i (E model only)

Audio

Dolby Digital 2ch, 48 kHz/16 Bit, 256 kbps

Web mode (QuickTime)

Recording file format

QuickTime File Format

Video

Mode other than HQ, LP

MPEG-4 AVC/H.264, 8 Mbps
720x480/59.94i, 720x576/50i

HQ mode

MPEG-4 AVC/H.264, 3 Mbps
960x540/29.97p, 23.98p, 25p

LP mode

MPEG-4 AVC/H.264, 1.2 Mbps
480x270/29.97p, 23.98p, 25p

Audio

Mode other than HQ, LP

LPCM 2ch, 48 kHz/16 Bit

HQ mode, LP mode

μ-law 2ch, 16 kHz

Web mode (AVCHD)

Recording file format

AVCHD File Format

Video

Mode other than LP, EP

MPEG-4 AVC/H.264, 8 Mbps
720x480/59.94i, 720x576/50i

LP mode

MPEG-4 AVC/H.264, 9 Mbps
1440x1080/59.94i, 50i

EP mode

MPEG-4 AVC/H.264, 5 Mbps
1440x1080/59.94i, 50i

Audio

Dolby Digital 2ch, 48 kHz/16 Bit, 256 kbps

Streaming Mode

1920x1080 (59.94i/50i)
12/8/5/3 Mbps
1280x720 (29.97p/25p)
8/5/3/1.5 Mbps
720x480 (59.94i)/720x576 (50i)
8/5/3/1.5/0.8/0.3/0.2 Mbps
480x270 (29.97p/25p)
0.2 Mbps
