Specifications

Power

When using an external power source:
DC 11.0 V to 17.0 V
When using a battery:
DC 14.4 V (Anton/Bauer, IDX)

Power consumption

Approx. 38 W
(during single recording at factory default settings while using the viewfinder)

Approx. 33 W
(When using only the camera body during single recording at factory default settings)

Mass

: Approx. 5.1 k (*1)
: Approx. 5.2 k (*1)
: Approx. 4.3 k (*2)
: Approx. 4.4 k (*2)

Allowable operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Allowable operating humidity

30 %RH to 80 %RH

Allowable storage temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Drip-proof performance

Equivalent to IPX2

Built-in wireless LAN

IEEE802.11a/b/g/n/ac
(2.4 GHz/5 GHz band)
Encryption method: WPA2

2.4 GHz

Ch1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11

5 GHz
USA

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

5 GHz
CANADA

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165

2.4 GHz

Ch1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

5 GHz
Outside Russia

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

5 GHz
Russia

Ch36, 40, 44, 48, 52, 56, 60, 64, 132, 136, 140, 149, 153, 157, 161, 165

[HD/SD SDI IN] terminal

3G-SDI,
HD-SDI

Compliant with SMPTE ST424,
Compliant with SMPTE ST292

3G-SDI,
HD-SDI

Embedded audio standard

Compliant with SMPTE ST299,
Compliant with SMPTE ST299

[HD/SD SDI OUT 1/2] terminal (480i or 576i: Downconverted
720p/1080i/1080p: embedded audio), BNC (unbalanced)

3G-SDI,
HD-SDI,
SD-SDI

Compliant with SMPTE ST424,
Compliant with SMPTE ST292,
Compliant with SMPTE ST259

3G-SDI,
HD-SDI,
SD-SDI

Embedded audio standard

Compliant with SMPTE ST299,
Compliant with SMPTE ST299,
Compliant with SMPTE ST272

[HDMI] output terminal

Type A

[VIDEO OUT] terminal (BNC)

Composite Video
1.0 V (p-p), 75 (unbalanced)

[VF] terminal

26-pin

[MIC IN] terminal
(XLR 5-pin)

-50 dBu, 4 k , XLR (balanced),
+48 V output (phantom power supply)

[AUDIO INPUT1/INPUT2] terminal (XLR 3-pin)

[MIC]

-60 dBu, 4 k , XLR (balanced),
+48 V output (phantom power supply)

[LINE]

+4 dBu, 10 k , XLR (balanced)

[AUDIO OUT] terminal
(XLR 5-pin)

0 dBu, 100 , XLR (balanced)

[PHONE] terminal

Φ3.5 mm stereo mini jack

[LAN] terminal
(RJ-45)

100BASE-TX/1000BASE-T

[HOST] terminal

USB-A type, network connection function only

[REMOTE] terminal

miniDin 6-pin

[TC IN] terminal

1.0 V(p-p) to 4.0 V(p-p) high impedance

[TC OUT] terminal

2.0 ± 1.0 V (p-p) low impedance

[LENS] terminal

12pin

[DC INPUT] terminal

XLR 4-pin

[DC OUT] terminal (rear)

4-pin, DC 11.0 V to 17.0 V, 1.8 A

4-pin, DC 11.0 V to 17.0 V, 1.5 A

[DC OUT] (LAN) terminal

4-pin, DC 11.0 V to 17.0 V, 0.5 A

4-pin, DC 11.0 V to 17.0 V, 0.2 A

[LIGHT] terminal

D-tap (DC 12 V, max. 50 W )
(DC 12 V, 2 A )

[GENLOCK] terminal

1.0 V (p-p), 75

Wireless audio slot

UniSlot
2ch, -40 dBu (balanced)

Expansion slot

For future expansion

Image pickup device

2/3-inch, 2.2 megapixels, progressive CMOS x 3

Lens Mount

2/3-inch B4 Bayonet mount system

Color separation prism

F1.4, 3-color separation prism

Sensitivity

F12, 2000 lx (standard value: 60 Hz)

Sync system

External/Internal Synchronization (Built-in SSG)

ND filter

CLEAR, 1/4, 1/16, 1/64

Gain

-6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB, Lolux (24 dB, 30 dB, 36 dB,42 dB), AGC

Electronic shutter

1/3 to 1/10000, EEI

LCD Monitor

3.5-inch LCD QHD (960 × 540)

Viewfinder

3.26-inch OLED WVGA (854 × 480)

Supported media

SDHC/SDXC

Slots

x 2

HD mode (MOV/MXF: MPEG-2)

Recording file format

QuickTime File Format (MOV),
MXF File Format (MXF)

Video

HQ mode

MPEG-2 Long GOP VBR, 35 Mbps (Max) MP@HL,
1920x1080/59.94i, 29.97p, 50i, 25p
1440x1080/59.94i, 50i
1280x720/59.94p, 50p

SP mode

MPEG-2 Long GOP CBR, 25 Mbps (Max) MP@H14
1440×1080/59.94i, 50i

Audio

LPCM 2ch/4ch, 48 kHz/16 Bit

HD mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

XHQ mode

MPEG-4 AVC/H.264, 70 Mbps (Max) 1920×1080/59.94p, 50p
MPEG-4 AVC/H.264, 50 Mbps (Max) 1920×1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p
1280×720/59.94p, 50p

XHQ mode

MPEG-4 AVC/H.264, 50 Mbps (Max)
1920×1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p

UHQ mode

MPEG-4 AVC/H.264, 35 Mbps (Max)
1920×1080/59.94i, 29.97p, 23.98p, 50i, 25p
1280×720/59.94p, 50p

Audio

LPCM 2ch/4ch, 48 kHz/16 Bit, 24 Bit (422 10 bit only)

HD mode (Exchange (U model) / MP4 (E model): H.264)

Recording file format

MP4 File Format

Video

LP mode

MPEG-4 AVC/H.264, 12 Mbps (Max)
1920x1080/59.94p (U model),
1920x1080/50p (E model),
MPEG-4 AVC/H.264, 8 Mbps (Max)
1280x720/59.94p (U model)
1280x720/50p (E model)

Audio

AAC 2ch, 48 kHz/16 Bit 128 kbps

HD mode (High-Speed)

Recording file format

QuickTime File Format

Video

XHQ mode

MPEG-4 AVC/H.264, 70 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p
MPEG-4 AVC/H.264, 50 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p, 119.88/29.97p, 100/25p, 119.88/23.98p

XHQ mode

MPEG-4 AVC/H.264, 50 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p, 119.88/29.97p, 100/25p, 119.88/23.98p

UHQ mode

MPEG-4 AVC/H.264, 35 Mbps (Max), 1920×1080
119.88/29.97p, 100/25p, 119.88/23.98p

Audio

LPCM 2ch, 48 kHz/16 Bit, 24 Bit (422 10 bit only)

SD mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

MPEG-4 AVC/H.264, 8 Mbps (Max)
720×480/59.94i (U model)
720×576/50i (E model)

Audio

LPCM 2ch, 48 kHz/16bit

Web mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

HQ mode

MPEG-4 AVC/H.264, 8 Mbps (Max)
720x480/59.94i, 720x576/50i
MPEG-4 AVC/H.264, 3 Mbps (Max)
960x540/29.97p, 25p, 23.98p

LP mode

MPEG-4 AVC/H.264, 1.2 Mbps (Max)
480x270/29.97p, 25p, 23.98p

Audio

LPCM 2ch/4ch, 48 kHz/16 Bit (720x480, 720x576)
μ-law 2ch/4ch, 16 kHz (960x540, 480x270)

Streaming mode

Video

MPEG-4 AVC/H.264
1920×1080/59.94p, 50p
24/20/16/12/8 Mbps (Max)
1920x1080/59.94i, 50i, 29.97p, 25p
20/16/12/8/5/3 Mbps (Max)
1280x720/59.94p, 50p
20/16/12/8/5/3 Mbps (Max)
1280x720/29.97p, 25p
8/5/3/1.5 Mbps (Max)
720x480/59.94i (U model)
720x576/50i (E model)
8/5/3/1.5/0.8/0.3 Mbps (Max)
640x360/59.94p, 50p
3/1.5 Mbps (Max)
640x360/29.97p, 25p
3/1.5/0.8/0.3 Mbps (Max)

Audio

AAC 2ch, 128/64 kbps

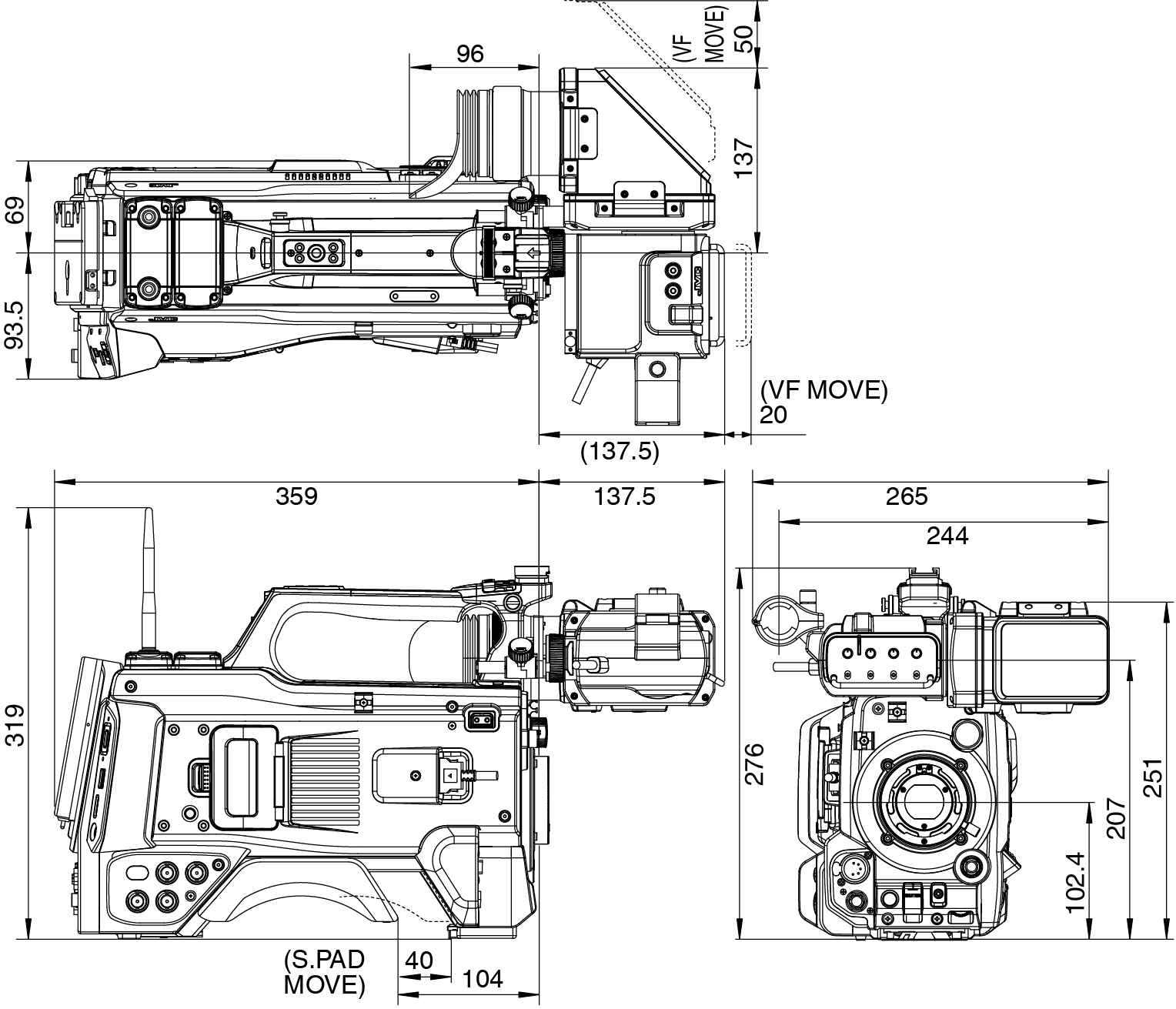

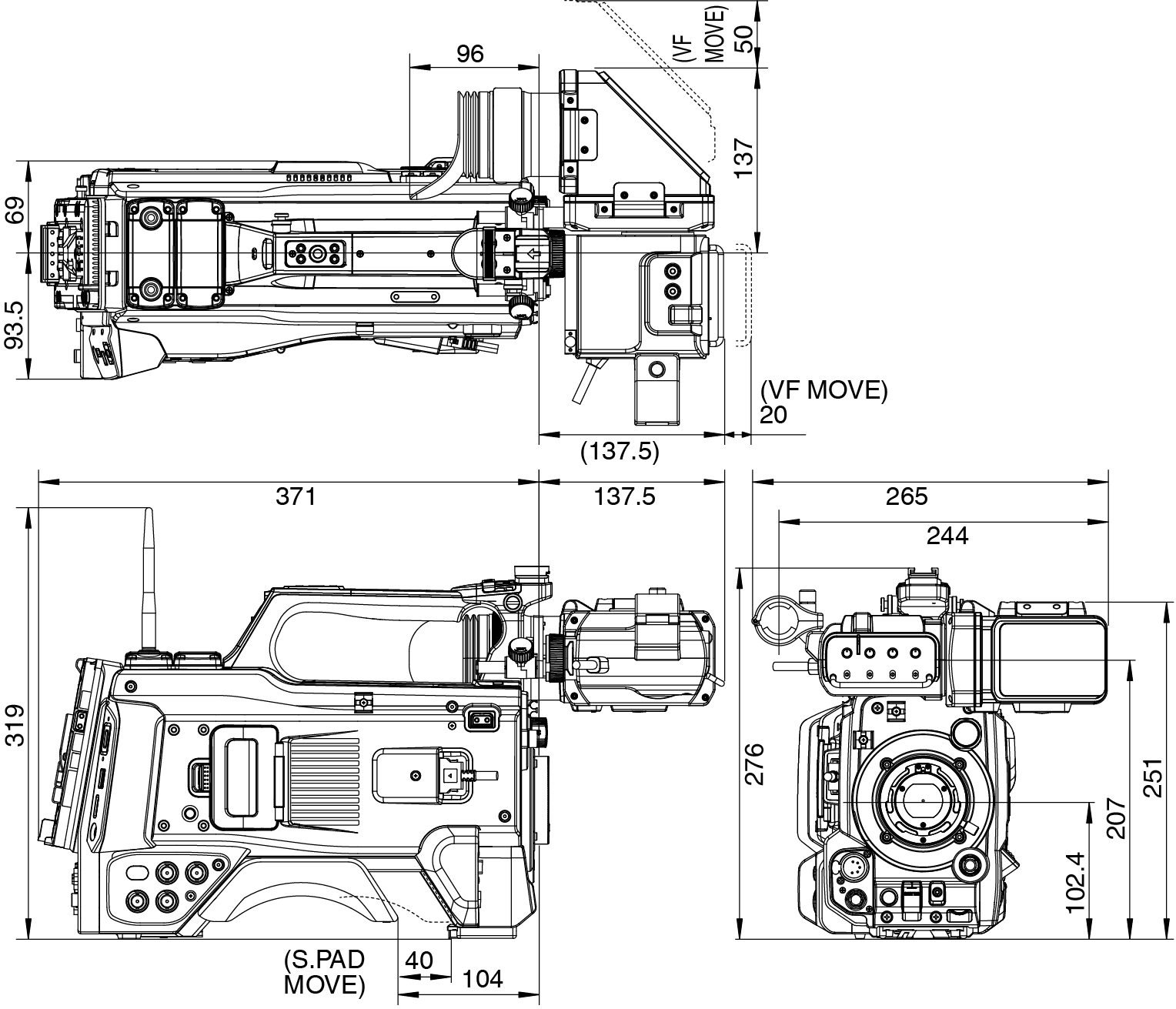

Warranty Card

INSTRUCTIONS (BASIC)

Electronic Viewfinder

Cold Shoe Unit

Screw (M2)

Wireless LAN Antenna

Core filter (large x 1, small x 1)
