Estimated Recordable Time of SD Cards

The estimated recordable time is only a guide. Differences may occur depending on the SD card in use and the battery condition.

The recordable time varies according to the settings in [System], [ SlotA_B Format], [ SlotA_B Resolution], [ SlotA_B Bit Rate] and [ SlotB_B Resolution].

The following is the recording time during audio 4ch recording. The recording time is longer for 2ch recording.

Resolution/ EXT

System	HD, HD + Web (HD)			SD, HD + Web (Web)	HD + Web (Web)
Format	QuickTime (H.264)
Resolution	1920x1080	1920x1080, 1280x720		720x480, 720x576	960x540	480x270
Bit Rate	XHQ (70M)	XHQ (50M)	UHQ	HQ	HQ	LP
8GB	12	17	24	80	240	480
16GB	24	35	48	160	480	960
32GB	48	70	96	320	960	1920
64GB*	96	140	192	640	1920	3840
128GB*	192	280	384	1280	3840	7680
256GB*	384	560	768	2560	7680	15360

(Unit: minute)

System	HD
Format	QuickTime (MPEG2), MXF (MPEG2)		Exchange, MP4 (H.264)
Resolution	1920x1080, 1440x1080, 1280x720	1440x1080	1920x1080	1280x720
Bit Rate	HQ	SP	LP (12M)	LP (8M)
8GB	24	32	80	120
16GB	48	64	160	240
32GB	96	130	320	480
64GB*	192	260	640	960
128GB*	384	520	1280	1920
256GB*	768	1040	2560	3840

(Unit: minute)

SDXC

Memo

If the SD card contains files recorded by devices other than this camera recorder or files that are saved from a PC, the recordable time may be shorter or data may not be properly recorded.

For each file format, up to 600 clips can be recorded to one SD card on this camera recorder. When 600 clips are recorded to one card, the remaining space is displayed as 0 min regardless of the estimated recordable time, and no further recording can be performed.

When [System] is configured to “High-Speed”, the remaining time display for recording to the SD card will run out faster than usual.

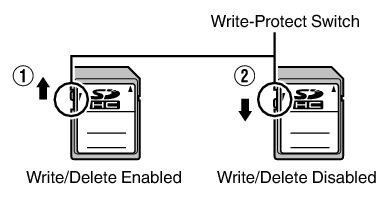

Write-Protect Switch on the SD Card

Slide the write-protect switch upward to enable writing or deleting.

Slide the write-protect switch downward to prevent writing or deleting. (Images in the card are protected.)
