You can extract (trim) the necessary parts of a clip recorded in the SD card.
The trimmed clip is saved as a new file on the same SD card as the original clip. No changes are made to the original clip.
Trimming Recorded Clips
Switch to Media mode.
Switch the mode using the [CAM/MEDIA] selection button on the side control panel.

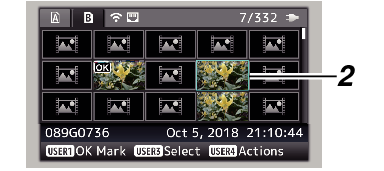

Move the cursor to the clip to be trimmed.
Move the cursor to the clip to be trimmed using the cross-shaped button (
).

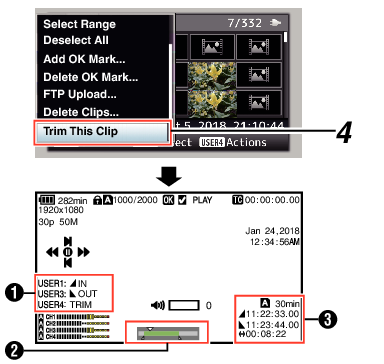

Press the [USER4] button.
The action selection screen is displayed.
Select [Trim This Clip], and press the Set button (
).
).Playback of the selected clip starts.
Guide
Operation guide
Position bar
:
Current position of the video
:
Position to start trimming (in point)
:
Position to end trimming (out point)
Trimming information
or
:
Indicates the available space in the storage media ( or )
:
Indicates the time code of the in point
:
Indicates the time code of the out point
:
Indicates the duration from the in point to the out point
Memo
The trimmed clip will be saved to the same card slot as that of the original clip.
[Duration] appears in yellow if the duration is 10 minutes or longer. Trimming cannot be performed in this case.
When [System]
[Record Set] [Record Format] [ Frame Rate] is set to “
70M (XHQ)”, [Duration] appears in yellow if the duration is 6 minutes or longer. Trimming cannot be performed in this case.
When [System] [Record Set] [Record Format] [System] is configured to “HD EXT(SSD)”, [Duration] appears in yellow if it is 6 minutes or longer. Trimming cannot be performed in this case.
[Duration] appears in yellow if the duration is longer than the recordable time on the storage media. Trimming cannot be performed in this case.
When trimming starts, the display switches to the Media Display screen.
Specify the in point.
Operate buttons such as / or / to move the video to the in point.
Specify the in point by pressing the [USER1] button at the point you want to start trimming.
Specify the out point.
Operate buttons such as / or / to move the video to the out point.
Specify the out point by pressing the [USER3] button at the point you want to end trimming.
Perform trimming.
Press the [USER4] button to perform trimming.
Memo
While trimming is in progress, you can press the [CANCEL/RESET] button to return to the thumbnail screen.
When trimming the in and out point, the in point trimmed may be up to one second before the specified in point and the out point trimmed may be up to one second behind the specified out point.
