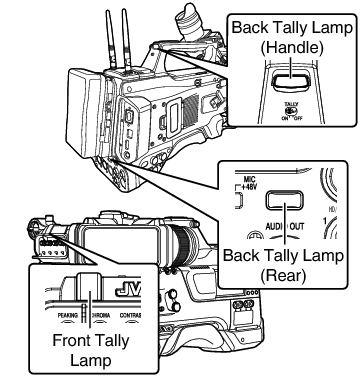

Tally Lamp

This is the indicator lamp for recording and warning.
The operation changes according to the menu settings.
The lamp blinks when the battery or remaining space on the recording media is low. (Camera mode only)

Configure in [System] arrowR [Front Tally]/[Back Tally].

Tally System

Front Tally/Back Tally

When [Tally System] is set to “Internal”

Menu Setting		Front Tally/ Back Tally
Menu Setting		Rec	Live Streaming	Rec/Live Streaming
Information on Camera Recorder Functions	Warning
Information on Camera Recorder Functions	Alarm
Camera Recorder Recording Status	Recording		-
Camera Recorder Recording Status	Special Recording in Progress *1		-
Live Streaming Status	Live Streaming in Progress	-

When [Tally System] is set to “Studio”

[TALLY] Switch		Front Tally/ Back Tally	Front Tally	Back Tally
[TALLY] Switch		OFF	HIGH or LOW	ON
Information on Camera Recorder Functions	Warning	-
Information on Camera Recorder Functions	Alarm	-
Input from Remote Control Unit	CALL	-	*2
	PROGRAM	-
	PREVIEW	-

REC button :

Lights up

U_botton :

Blinks four times in 1 second

STOP button :

Blinks once in 1 second

Paused state during special recording ([Clip Continuous]).

Clip Continuous Rec

Back tally only

Memo

Blinking takes priority over lighting up.
