Connecting the Headphone

Audio output from the [PHONE] terminal can be selected using [A/V Set] arrowR [Audio Set] arrowR [PHONE Output] and the combination of the [MONI SELECT] and [CH SELECT] switches.

PHONE Output

The outputs from the [PHONE] terminal and monitor speaker are as follows according to the different combinations of settings.

[MONI SELECT] Switch Setting	[PHONE Output] Setting	[PHONE] Terminal		Speaker
[MONI SELECT] Switch Setting	[PHONE Output] Setting	L	R	Speaker
[CH1/CH3]	-	CH1		CH1
[BOTH]	Mix	CH1+CH2		CH1+CH2
[BOTH]	Stereo	CH1	CH2	CH1+CH2
[CH2/CH4]	-	CH2		CH2

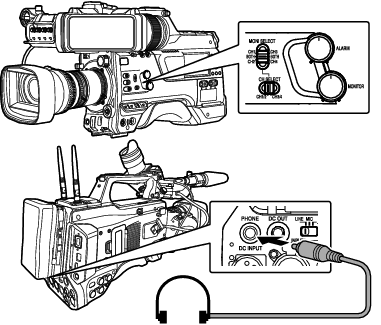

Connect the headphone.

Select the channels to monitor using the different combinations of the [MONI SELECT] and [MONI SELECT] switches.

Combinations of [MONI SELECT] and [CH SELECT] Switches	Channels to Monitor	Description
	CH1	The audio input to [CH1] is output.
	CH2	The audio input to [CH2] is output.
	CH1/CH2	The audio inputs to [CH1] and [CH2] are output.
	CH3	The audio input to [CH3] is output.
	CH4	The audio input to [CH4] is output.
	CH3/CH4	The audio inputs to [CH3] and [CH4] are output.

Use the [MONITOR] adjustment knob to adjust the monitor volume.

Memo

There is no sound output from the speaker when the headphone is connected.
