By combining with the decoder or PC application that supports live streaming, you can perform audio and video streaming via the network.
Performing Live Streaming
Supported Formats
Not selectable when the setting is configured to HD(SDI In) or SD(SDI In).
Formats Supported on KA-EN200 (Sold Separately)
|

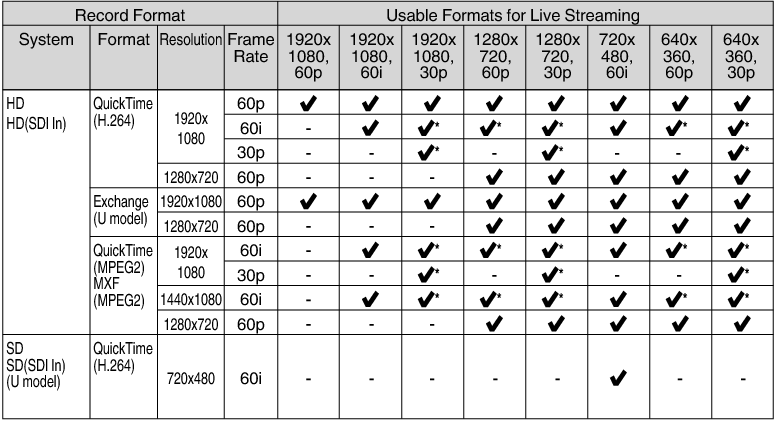

Record Format |
Usable Formats for Live Streaming |
||||||
|---|---|---|---|---|---|---|---|
|
System |
Format |
Resolution |
Frame Rate |
1920x1080, 60p |
1920x1080, 30p |
1280x1080, 60p |
1280x1080, 30p |
|
HD |
QuickTime |
1920x1080 |
60p |
|
|
|
|
|
60i |
|
|
|
|
|||
|
30p |
- |
|
- |
|
|||
|
1280x720 |
60p |
- |
- |
|
|
||
|
Exchange |
1920x1080 |
60p |
|
|
|
|
|
|
1280x720 |
60p |
- |
- |
|
|
||
|
QuickTime (MPEG2) |
1920x1080 |
60i |
|
|
|
|
|
|
30p |
- |
|
- |
|
|||
|
1440x1080 |
60i |
|
|
|
|
||
|
1280x720 |
60p |
- |
- |
|
|
||
|

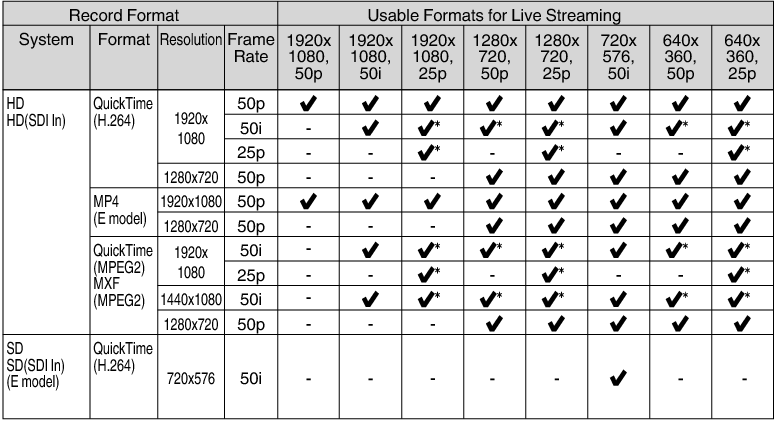

Record Format |
Usable Formats for Live Streaming |
||||||
|---|---|---|---|---|---|---|---|
|
System |
Format |
Resolution |
Frame Rate |
1920x1080, 50p |
1920x1080, 25p |
1280x1080, 50p |
1280x1080, 25p |
|
HD |
QuickTime |
1920x1080 |
50p |
|
|
|
|
|
50i |
|
|
|
|
|||
|
25p |
- |
|
- |
|
|||
|
1280x720 |
50p |
- |
- |
|
|
||
|
MP4 |
1920x1080 |
50p |
|
|
|
|
|
|
1280x720 |
50p |
- |
- |
|
|
||
|
QuickTime (MPEG2) |
1920x1080 |
50i |
|
|
|
|
|
|
25p |
- |
|
- |
|
|||
|
1440x1080 |
50i |
|
|
|
|
||
|
1280x720 |
50p |
- |
- |
|
|
||
The 4:2:2 and 4:2:0 modes are available for selection when the frame rate is 60p/50p.
Memo
The distributable resolution, frame rate and bit rate vary according to the recording format.
To distribute progressive video, set the frame rate to any of the progressive frame rates. And to distribute interlace video, set the frame rate to any of the interlace frame rates.
The following constraints apply depending on the setting of [Network]
[Live Streaming] [Type].
A bit rate not exceeding maximum 12 Mbps can be configured when [Type] is set to “RTSP/RTP”.
When [Type] is set to “ZIXI”, a bit rate not exceeding maximum 12 Mbps can be configured regardless of the [Latency] setting.
Depending on the type of network adapter used and the connection, the images and audio sound during live streaming can be choppy.
Audio
AAC
Supported Protocols
MPEG2-TS/UDP
MPEG2-TS/TCP
MPEG2-TS/RTP
RTSP/RTP
ZIXI
SRT
RTMP
RTMPS
Memo
The model is equipped with the Zixi protocol, thus SRT protocol update needs to be performed before using the SRT protocol. Doing so will make the Zixi protocol unusable.
To enable the use of the Zixi protocol again, perform Zixi protocol update.
