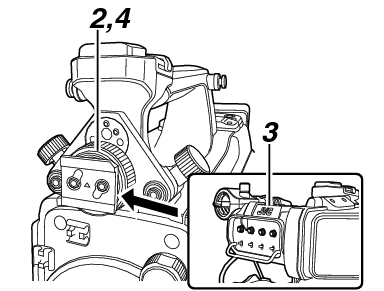

Attaching the Viewfinder (Supplied) 900CHU 900CHE

HC900_attach_ViewFinder
Set the [POWER ON/OFF] switch of the camera recorder to “OFF”.
Loosen the viewfinder left-right position lock ring.
Slide the viewfinder in the direction of the arrow to attach it.
Memo
HC900_pullup_SlideStopper

To detach the viewfinder, pull the slide stopper up and slide it in opposite direction of the arrow.

Turn the viewfinder left-right position lock ring to secure the position of the viewfinder.
Attach the viewfinder cable to the [VF] terminal.
Pin the viewfinder cable to the clamp.
