This camera recorder can be attached with a B4 mount lens.
Attaching the Lens (Sold Separately)
Caution
Check that the camera recorder is turned off before attaching the lens. Attaching the lens with the power turned on can result in accident and malfunction.
When detaching the lens, do not touch the optical filter or allow dust to adhere to the optical filter.

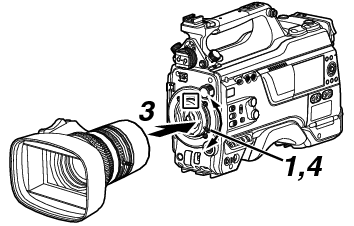

Loosen the lens lock lever.
Detach the body cap.
Do not lose the body cap, keep it properly.
Attach the zoom lens such that the pin matches the hole of the mounting area.
Tighten the lens lock lever.
Connect the lens cable to the [LENS] terminal.
Attach the lens cable to the clamp.
Memo
Tighten the lens lock lever completely. If it is not fully tightened, the lens may drop or the back focus may be out of alignment.
For details on the lens, please refer to the “INSTRUCTIONS” of the lens used.
It is necessary to adjust the back focus before use.
