Using AC Power (DC IN Power)

Use the AC adapter (sold separately) to operate the camera recorder with AC power.

Recommended AC Adapter

900CHU 900STU :

Tandem 150 (Anton/Bauer)

900CHE :

IA-300a (IDX)

900RCHE :

AC-100 (IDX)

Memo

For the type of AC adapter to be attached on a battery mount, check the method of attachment in Using a Battery Pack .

Attaching Core Filter Beforehand 900CHE

Attach the core filter (large) to the DC cable of the AC adapter before using the AC adapter.

HC900_CoreFilter

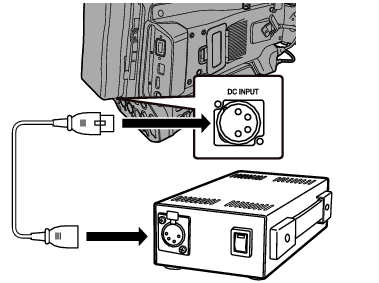

Connect the DC cable of the AC adapter to the [DC INPUT] terminal of the camera recorder.

Check that the power of this unit and that of the AC adapter are both set to “OFF”, followed by connecting according to the diagram.

HC900_AC_Connect
Turn on the power of the AC adapter, followed by setting the [POWER ON/OFF] switch of this unit to “ON”.

Power will be supplied to the camera recorder.

Caution

Do not insert or remove the DC cable during recording.

Do not use power supply of high voltage fluctuation, containing noise such as ripple, or with insufficient capacity.
