Video lights or accessories can be attached to the accessory shoe of this camera recorder.
Attaching the Video Light (Sold Separately)
The accessory shoe is of the 1/4-inch screw type. To make use of a slide shoe, attach the supplied cold shoe unit.
Attaching the Cold Shoe Unit
Remove the plate from the cold shoe unit.
While lifting the catch, slide the plate out.
Attach the cold shoe unit to the shoe of this camera recorder using the four screws supplied.

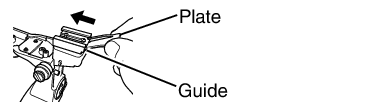

Attach the plate to the cold shoe unit.
Push the catch up from the bottom and slot the plate into the guide in the direction of the arrow.
Attaching the Video Light
The [LIGHT] terminal (D-tap) of this camera recorder can be connected with a video light (DC 12 V, maximum power consumption 50 W
and DC 12V, 2A
).
Connect the [LIGHT] terminal after attaching the accessory shoe.
When the [LIGHT] switch is set to “AUTO”, the light goes on only during recording in tandem with the camera. When it is set to “MANUAL”, the light goes on or turns off respectively when the video light power is turned on or off.
