LCD Monitor

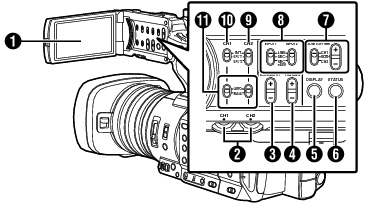

HC500_name_Fig05

LCD Monitor

Adjusting the LCD Monitor and Viewfinder

[CH1/CH2] CH1/CH2 Recording Level Adjustment Knob

Audio Recording

[LCD BRIGHT +/-] LCD Display Brightness Adjustment Button

Adjusting the Brightness

[PEAKING +/-] LCD/VF Contour Adjustment Button

Adjusting the Contour (LCD)
Adjusting the Contour (Viewfinder)

[DISPLAY] Display Button

Press the [DISPLAY] button to switch to the display screen during normal screen display (when the menu screen is not displayed).

Display Screen

Switches between [Main Menu] and [Favorites Menu] when the [DISPLAY] button is pressed while the menu screen is displayed.

Basic Operations in Menu Screen

[STATUS] Status Screen Display Button

Press the [STATUS] button to display the status screen on the viewfinder and LCD monitor during normal screen display (when the menu screen is not displayed).

Status Screen

[MONITOR]/[+/-] Audio Monitor Selection Switch/Volume Adjustment Button

Switches the audio monitor and adjusts the monitor speaker/headphone.

Monitoring Audio Sound During Recording Using a Headphone

[INPUT1/INPUT2] Audio Input Signal Selection Switch

Audio Recording

[CH2] CH2 Audio Input Signal Selection Switch

Select the audio input terminal to record to CH2.

Audio Recording

[CH1] CH1 Audio Input Signal Selection Switch

Audio Recording

[CH1/CH2 AUTO/MANUAL] CH1/CH2 Audio Recording Mode Switch

Adjusting Audio Recording Level
