Formatting (Initializing) of Recording Media

When any of the following recording media (SD card or SSD media) is inserted, [!FORMAT] appears in the remaining level display area.
Format the card using the camera recorder menu.

Unformatted recording media

Recording media formatted under different specifications

For details of the menu operation, refer to “Basic Operations in Menu Screen ”.

Caution

Be sure to format the recording media on this camera recorder. Recording media formatted on a PC or other peripheral equipment cannot be used on this camera recorder.

[!RESTORE] appears in the remaining level display area when a recording media that requires repair is inserted.

Select [System] arrowR [Media] arrowR [Format Media].
Memo

[Format Media EXT ] can be selected in the following cases.

[System] is set to “4K EXT(SSD)”

[System] is set to “HD EXT(SSD)”

[Slot Mode] is set to “Backup EXT

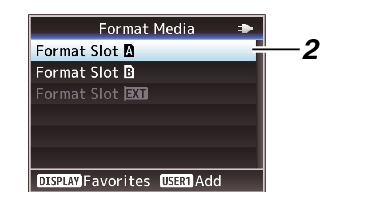

Select the slot of the card to be formatted and press the Set button ( REC button ).
HC500 Format Media 01
The status of the selected recording media is displayed.

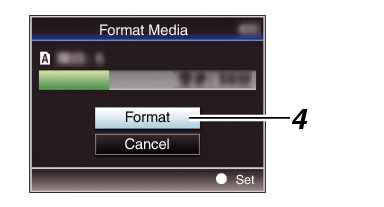

Select [Format] and press the Set button ( REC button ).
Format_Media_02_890

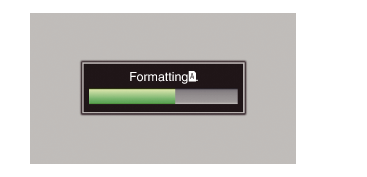

Formatting starts.
Format_Media_03_890
Formatting is complete.

When formatting is complete, “Complete” appears and the camera recorder returns to the [Format Media] screen.

Memo

The menu cannot be operated while formatting is in progress, but recording is possible to the slot where formatting is not executed.

Formatting cannot be performed in the following cases.

When recording to the recording media to be formatted is in progress.

SD card is not inserted.

Write-protect switch of the SD card is set ( Lock is displayed).

Caution

If you format a recording media, all data recorded to it, including video data and setup files, will be deleted.
