Specifications

Power

DC 12 V

Power consumption

Approx. 24.0 W
(When recording in the factory default settings using the viewfinder.)

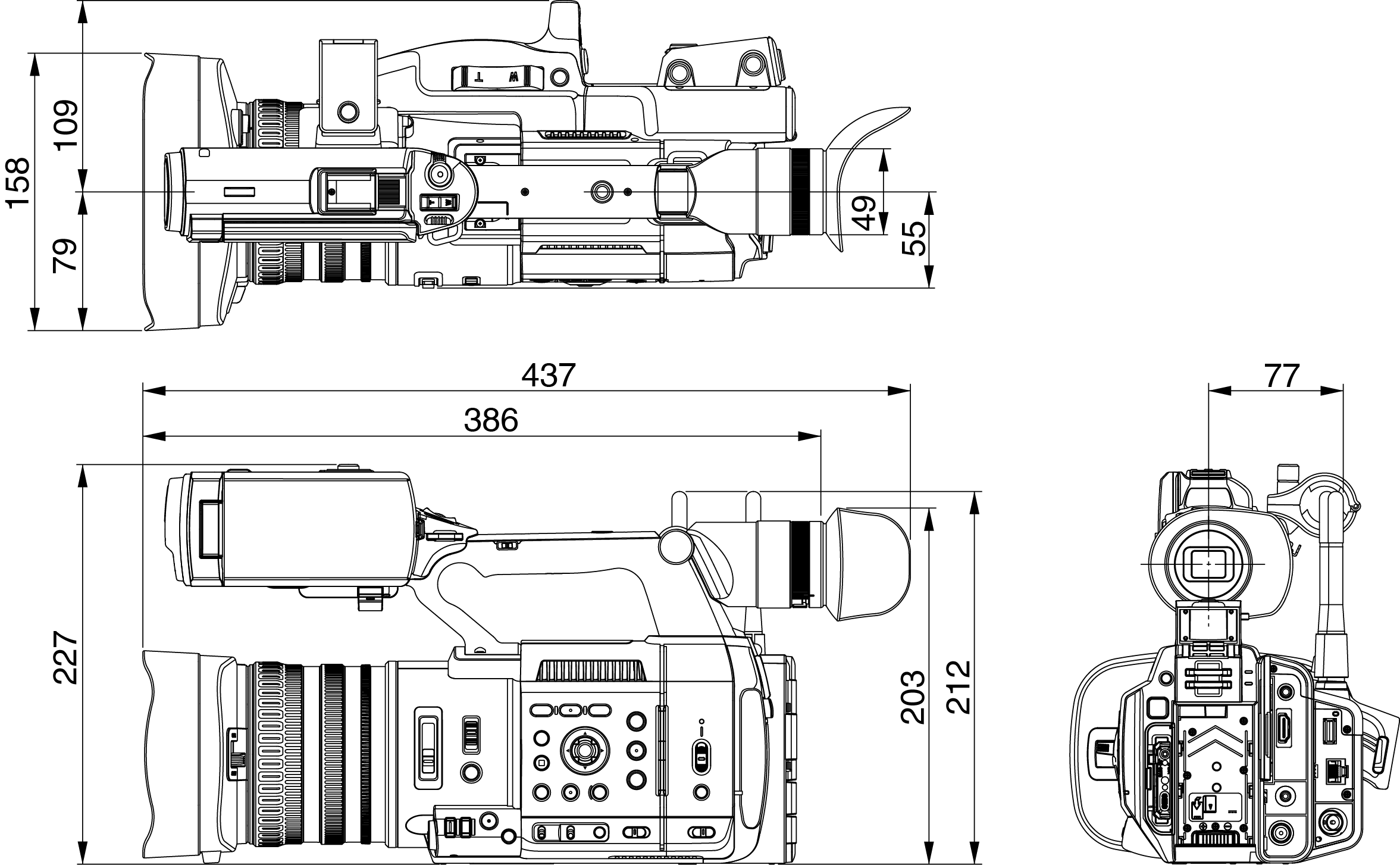

Mass

Approx. 3.6 k
(With battery attached)

Allowable operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Allowable operating humidity

30 %RH to 80 %RH

Allowable storage temperature

-20 °C to 50 °C (-4 °F to 122 °F)

Built-in wireless LAN

IEEE802.11a/b/g/n/ac
(2.4 GHz/5 GHz band)
Encryption method: WPA2

U model

2.4 GHz

Ch1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11

5 GHz
USA

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

5 GHz
CANADA

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165

E model

2.4 GHz

Ch1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

5 GHz
Outside Russia

Ch36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

5 GHz
Russia

Ch36, 40, 44, 48, 52, 56, 60, 64, 132, 136, 140, 149, 153, 157, 161, 165

[SDI OUT] terminal (480i or 576i: Downconverted 720p/1080i/1080p: embedded audio), BNC (unbalanced)

3G-SDI,
HD-SDI,
SD-SDI

Compliant with SMPTE ST424,
Compliant with SMPTE ST292,
Compliant with SMPTE ST259

3G-SDI,
HD-SDI,
SD-SDI

Embedded audio standard

Compliant with SMPTE ST299,
Compliant with SMPTE ST299,
Compliant with SMPTE ST272

[HDMI] output terminal

Type A

[INPUT 1/INPUT 2] Terminal (XLR 3-pin)

[MIC]

-50 dBu, 3 k , XLR (balanced),
+48 V output (phantom power supply)

[LINE]

+4 dBu, 10 k , XLR (balanced)

[AUX] terminal

-22 dBu, 10 k , 3.5 mm stereo mini jack (unbalanced)

[ ] Terminal

Φ3.5 mm stereo mini jack

[LAN] terminal
(RJ-45)

100BASE-TX/1000BASE-T

[HOST] terminal

USB-A type, network connection function only

[REMOTE] terminal

Φ2.5 mm mini jack
(Stereo)

[TC IN/OUT] terminal

[IN]

1.0 V(p-p) to 4.0 V(p-p) high impedance

[OUT]

2.0 ± 1.0 V (p-p) low impedance

Image pickup device

1" single CMOS sensor (effective resolution: approx. 9.35 megapixels)

Sync system

Internal sync (built-in SSG)

ND filter

OFF, 1/4, 1/16, 1/64

Gain

-6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, Lolux (30 dB, 36 dB), AGC

Electronic shutter

1/6 to 1/10000, EEI

LCD Monitor

3.97" LCD (800x480)

Viewfinder

0.4"
4:3 Quad-VGA (1280x960)

Lens

F2.8 to F4.5, 20x zoom,
f = 9.43 mm to 188.6 mm
(35 mm equivalent: 28.0 mm to 560.0 mm)

Filter diameter

Φ82 mm

Sensitivity

F11, 2000 lx (standard value: 60 Hz)

Supported media

SDHC/SDXC: SD slots x 2
M.2 SSD: Expansion slot

4K EXT (SSD) mode (Apple ProRes)

Recording file format

QuickTime File Format

Video

422HQ mode

Apple ProRes 422 HQ, 1768 Mbps (Max),
3840x2160/59.94p, 50p, 29.97p, 23.98p, 25p

422 mode

Apple ProRes 422, 1178 Mbps (Max),
3840x2160/59.94p, 50p, 29.97p, 23.98p, 25p

422LT mode

Apple ProRes 422 LT, 821 Mbps (Max),
3840x2160/59.94p, 50p, 29.97p, 23.98p, 25p

Audio

LPCM 2ch, 48 kHz/24 bit

4K mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

XHQ mode

MPEG-4 AVC/H.264, 150 Mbps (Max)
3840×2160/29.97p, 23.98p, 25p

XHQ mode

MPEG-4 AVC/H.264, 150 Mbps (Max)
3840×2160/29.97p, 23.98p, 25p
MPEG-4 AVC/H.264, 70 Mbps (Max)
3840×2160/29.97p, 23.98p, 25p

Audio

LPCM 2ch, 48 kHz/16 bit, 24 bit (422 10 bit only)

HD mode (MOV/MXF: MPEG-2)

Recording file format

QuickTime File Format (MOV),
MXF File Format (MXF)

Video

HQ mode

MPEG-2 Long GOP VBR, 35 Mbps (Max) MP@HL,
1920x1080/59.94i, 29.97p, 50i, 25p
1440x1080/59.94i, 50i
1280x720/59.94p, 50p

SP mode

MPEG-2 Long GOP CBR, 25 Mbps (Max) MP@H14
1440×1080/59.94i, 50i

Audio

LPCM 2ch, 48 kHz/16 Bit

HD mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

XHQ mode

MPEG-4 AVC/H.264, 70 Mbps (Max) 1920×1080/59.94p, 50p
MPEG-4 AVC/H.264, 50 Mbps (Max) 1920×1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p
1280×720/59.94p, 50p

XHQ mode

MPEG-4 AVC/H.264, 50 Mbps (Max)
1920×1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p

UHQ mode

MPEG-4 AVC/H.264, 35 Mbps (Max)
1920×1080/59.94i, 29.97p, 23.98p, 50i, 25p
1280×720/59.94p, 50p

Audio

LPCM 2ch, 48 kHz/16 Bit, 24 Bit (422 10 bit only)

HD mode (Exchange (U model) / MP4 (E model): H.264)

Recording file format

MP4 File Format

Video

LP mode

MPEG-4 AVC/H.264, 12 Mbps (Max)
1920x1080/59.94p (U model),
1920x1080/50p (E model),
MPEG-4 AVC/H.264, 8 Mbps (Max)
1280x720/59.94p (U model)
1280x720/50p (E model)

Audio

AAC 2ch, 48 kHz/16 Bit 128 kbps

HD mode (High-Speed)

Recording file format

QuickTime File Format

Video

XHQ mode

MPEG-4 AVC/H.264, 70 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p
MPEG-4 AVC/H.264, 50 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p, 119.88/29.97p, 100/25p, 119.88/23.98p

XHQ mode

MPEG-4 AVC/H.264, 50 Mbps (Max), 1920×1080
119.88/59.94p, 100/50p, 119.88/29.97p, 100/25p, 119.88/23.98p

UHQ mode

MPEG-4 AVC/H.264, 35 Mbps (Max), 1920×1080
119.88/29.97p, 100/25p, 119.88/23.98p

Audio

LPCM 2ch, 48 kHz/16 Bit, 24 Bit (422 10 bit only)

SD mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

MPEG-4 AVC/H.264, 8 Mbps (Max)
720×480/59.94i (U model)
720×576/50i (E model)

Audio

LPCM 2ch, 48 kHz/16bit

Web mode (MOV: H.264)

Recording file format

QuickTime File Format

Video

HQ mode

MPEG-4 AVC/H.264, 8 Mbps (Max)
720x480/59.94i, 720x576/50i
MPEG-4 AVC/H.264, 3 Mbps (Max)
960x540/29.97p, 25p, 23.98p

LP mode

MPEG-4 AVC/H.264, 1.2 Mbps (Max)
480x270/29.97p, 25p, 23.98p

Audio

LPCM 2ch, 48 kHz/16 Bit (720x480, 720x576)
μ-law 2ch, 16 kHz (960x540, 480x270)

Streaming mode

Video

MPEG-4 AVC/H.264
1920x1080/59.94p, 50p
24/20/16/12/8 Mbps (Max)
1920x1080/59.94i, 50i, 29.97p, 25p
20/16/12/8/5/3 Mbps (Max)
1280x720/59.94p, 50p
20/16/12/8/5/3 Mbps (Max)
1280x720/29.97p, 25p
8/5/3/1.5 Mbps (Max)
720x480/59.94i
720x576/50i
8/5/3/1.5/0.8/0.3 Mbps (Max)
640x360/59.94p, 50p
3/1.5 Mbps (Max)
640x360/29.97p, 25p
3/1.5/0.8/0.3 Mbps (Max)
606x1080 (59.94p/50p)
8/5/3 Mbps
1080x1080 (59.94p/50p)
8/5/3 Mbps
404x720 (59.94p/50p)
5/3/1.5 Mbps
720x720 (59.94p/50p)
5/3/1.5 Mbps

Audio

AAC 2ch, 128/64 kbps

Warranty Card (U model only)

INSTRUCTIONS (BASIC)

AC Adapter

Power Cord (U model: 1, E model: 2)

Battery

Wireless LAN Antenna
