Attaching/Detaching the Hood

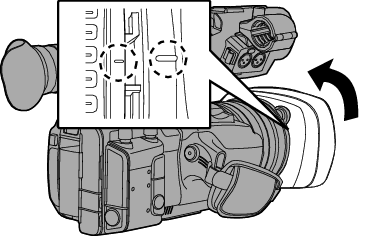

Attaching the Hood

Align the markings on the camera recorder and hood; turn the hood in the direction of the arrow until it is locked.

GY-HC500_FoodSet

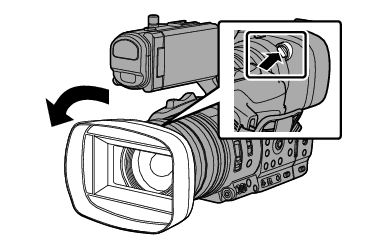

Detaching the Hood

While pressing the hood release button, turn the hood in the direction of the arrow (anti-clockwise) to remove it.

GY-HC500_FoodOut
Caution

Remove the hood when attaching a filter, teleconverter or wide converter to the front of the lens.
