Playing Recorded Clips

To play back clips recorded in a recording media, switch to the Media mode.

Press and hold the [MODE] selection button in the Camera mode to enter the Media mode. A thumbnail screen of the clips recorded on the recording media is displayed.

You can play back the selected clip on the thumbnail screen.

Memo

When a recording media without any clips is inserted, “No Clips” is displayed.

Operation Buttons

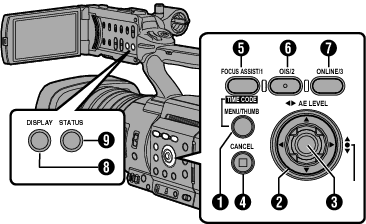

Use the operation buttons on the side control panel or front side of the camera recorder to operate the thumbnail screen.

HC500_USB_Select Key

[MENU/THUMB] Button

Displays the menu.

Press this button to close the menu screen during menu display and return to the thumbnail screen.

Cross-Shaped Button ( U_botton D_botton L_botton R_botton )

Moves the cursor.

Set (Play) Button

Sets the values and items. (Confirm)

Plays back the selected clip.

[CANCEL] (Stop) Button

Cancels settings and returns to the previous screen.

[FOCUS ASSIST/1] Button

Switches the OK mark of the clip selected by the cursor.

If an OK mark has been appended, it will be deleted. Otherwise, an OK mark will be appended.

[OIS/2] Button

Switches the selection status of the clip selected by the cursor.

Clips being selected are displayed with check mark.

[ONLINE/3] Button

Enters the action selection screen.

[DISPLAY] Button

Switches between the “Standard Screen” and “Detailed Screen”.

[STATUS] Button

Displays the media information screen.
