This camera recorder comes with two card slots (Slot A and B) for video/audio recording and playback.

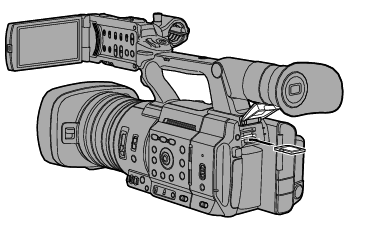

Inserting an SD Card
Open the SD card cover.
Insert an SD card into the slot with the notched corner of the card on the right.
The status indicator of the card slot to which the card was inserted lights up in red.
Close the SD card cover.
Card Slot Status Indicator
The following table shows the respective states of slot A and B.
|
Lamp |
Slot Status |
|---|---|
|
Lights up in red |
The inserted SD card is being accessed. (writing/reading data) Do not turn off the power of the camera recorder or remove the SD card. |
|
Lights up in green |
On standby. The inserted SD card can be used for recording or playback. |
|
Light goes out |
SD card is not inserted. An unusable card is inserted. An SD card is inserted but a different slot is selected. |
