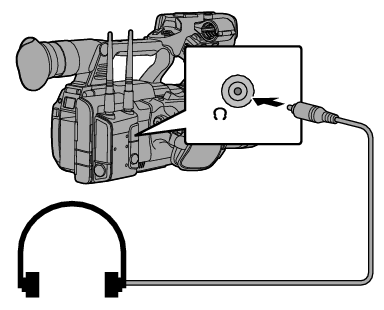

Connect the headphone

Audio output from the [ PHONE ] terminal can be selected using the [A/V Set] arrowR [Monitor] item or the [MONITOR] selection switch on the camera recorder.

Monitor

The different combinations of settings that are output from the [ PHONE ] terminal and monitor speaker are as follows.

[MONITOR] Selection Switch Setting	[Monitor] Setting	[ ] Terminal		Speaker *
[MONITOR] Selection Switch Setting	[Monitor] Setting	L	R	Speaker *
[CH1]	-	CH1		CH1
[BOTH]	[Mix]	CH1+CH2		CH1+CH2
[BOTH]	[Stereo]	CH1	CH2	CH1+CH2
[CH2]	-	CH2		CH2

Audio is output from the speaker only in Media mode. Does not output in the Camera mode.

Memo

If both CH1 and CH2 are set to built-in microphone and the [MONITOR] selection switch has been set to “BOTH”, stereo sound is output from the [ PHONE ] terminal regardless of the [Monitor] setting.
