Registering the Access Points of the Camera to Connect ( ACCESS POINTS )

There are 4 ways to register the access points (wireless LAN router) for connection.

Wi-Fi Protected Setup (WPS) Registration

This is the easiest way of registration.
Authentication method and wireless LAN setup are performed automatically in WPS, allowing easy registration of connection settings between devices.

Search and Register

A search is conducted to locate access points. Select and register an access point from the list of search results.

Manual Registration

Enter the name and authentication method manually to register an access point.

WPS PIN Registration

Enter the WPS PIN code of the camera to the access point to register.

Memo

By registering multiple access points, you can change connection to another access point by tapping on the desired one from the list.

Wi-Fi Protected Setup (WPS) Registration

Tap “MENU”.
(Operation on this camera)

Tap MENU

The top menu appears.

Tap the “Wi-Fi” ( Wi-Fi ) icon.
(Operation on this camera)

C3B_TOP_MENU(Wi-Fi)

Tap Cursor_Right on the lower right of the screen.
(Operation on this camera)

C3-Wi-Fi_MENU_1

Tap “COMMON Wi-Fi SETTING”.
(Operation on this camera)

C3-Wi-Fi_MENU_2

Tap “ACCESS POINTS”.
(Operation on this camera)

C3_WiFi COMMON-SET ACCESSPOINT

Tap “ADD”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD

Tap “EZ REGISTRATION WPS”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_WPS

Activate WPS of the access point (wireless LAN router) within 2 minutes.

To activate WPS, refer to the instruction manual of the device in use.

After registration is complete, tap “OK” on the camera’s screen.
(Operation on this camera)

WiFi_ACCESS POINTS_ADD_WPS2

Search and Register

Tap “MENU”.
(Operation on this camera)

Tap MENU

The top menu appears.

Tap the “Wi-Fi” ( Wi-Fi ) icon.
(Operation on this camera)

C3B_TOP_MENU(Wi-Fi)

Tap Cursor_Right on the lower right of the screen.
(Operation on this camera)

C3-Wi-Fi_MENU_1

Tap “COMMON Wi-Fi SETTING”.
(Operation on this camera)

C3-Wi-Fi_MENU_2

Tap “ACCESS POINTS”.
(Operation on this camera)

C3_WiFi COMMON-SET ACCESSPOINT

Tap “ADD”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD

Tap “SEARCH”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_S1

The search results appear on the camera’s screen.

Tap the name (SSID) of the desired access point from the list of search results.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_S2

Register a password.
(Operation on this camera)

C2-WiFi_Passwardx8

Tap on the on-screen keyboard to enter characters. The character changes with every tap.
“ABC”, for example, enter “A” by tapping once, “B” by tapping twice, or “C” by tapping 3 times.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap LEFT or RIGHT to move one space to the left or right.

The password is not required if the wireless LAN router is not security protected.

After registration is complete, tap “OK” on the camera’s screen.
(Operation on this camera)

WiFi_ACCESS POINTS_ADD_WPS2

Manual Registration

Tap “MENU”.
(Operation on this camera)

Tap MENU

The top menu appears.

Tap the “Wi-Fi” ( Wi-Fi ) icon.
(Operation on this camera)

C3B_TOP_MENU(Wi-Fi)

Tap Cursor_Right on the lower right of the screen.
(Operation on this camera)

C3-Wi-Fi_MENU_1

Tap “COMMON Wi-Fi SETTING”.
(Operation on this camera)

C3-Wi-Fi_MENU_2

Tap “ACCESS POINTS”.
(Operation on this camera)

C3_WiFi COMMON-SET ACCESSPOINT

Tap “ADD”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD

Tap “MANUAL”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_MANUAL1

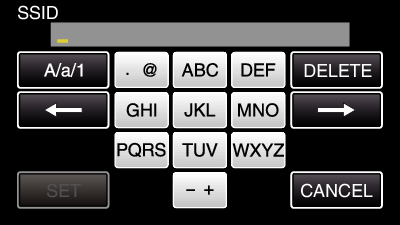

Enter the name (SSID) of the access point (wireless LAN router) and tap “SET”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_M2

Tap on the on-screen keyboard to enter characters. The character changes with every tap.
“ABC”, for example, enter “A” by tapping once, “B” by tapping twice, or “C” by tapping 3 times.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap LEFT or RIGHT to move one space to the left or right.

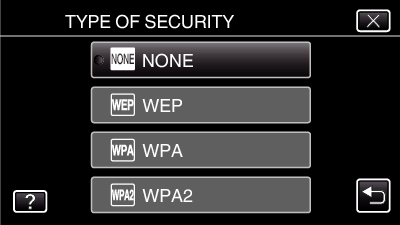

Select the type of authentication method (security).
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_M3

Select according to the setting of your router.

When authentication method is not set to “NONE”, enter a password and tap “SET”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_M4

Tap on the on-screen keyboard to enter characters. The character changes with every tap.
“ABC”, for example, enter “A” by tapping once, “B” by tapping twice, or “C” by tapping 3 times.

Tap “DELETE” to delete a character.

Tap “CANCEL” to exit.

Tap “A/a/1” to select character input type from upper case letter, lower case letter, and number.

Tap LEFT or RIGHT to move one space to the left or right.

After registration is complete, tap “OK” on the camera’s screen.
(Operation on this camera)

WiFi_ACCESS POINTS_ADD_WPS2

WPS PIN Registration

Tap “MENU”.
(Operation on this camera)

Tap MENU

The top menu appears.

Tap the “Wi-Fi” ( Wi-Fi ) icon.
(Operation on this camera)

C3B_TOP_MENU(Wi-Fi)

Tap Cursor_Right on the lower right of the screen.
(Operation on this camera)

C3-Wi-Fi_MENU_1

Tap “COMMON Wi-Fi SETTING”.
(Operation on this camera)

C3-Wi-Fi_MENU_2

Tap “ACCESS POINTS”.
(Operation on this camera)

C3_WiFi COMMON-SET ACCESSPOINT

Tap “ADD”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD

Tap “WPS PIN”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_WPS_P

The PIN code appears.

Enter the PIN code displayed on the camera to the access point (wireless LAN router).

For details on how to enter the PIN code, refer to the instruction manual of the device in use.

Tap “START”.
(Operation on this camera)

C2-WiFi_ACCESS POINTS_ADD_WPS_P2

Tap “START” after entering PIN code to the wireless LAN router.
(Connection cannot be established if “START” is tapped before entering the code.)

After registration is complete, tap “OK” on the camera’s screen.
(Operation on this camera)

WiFi_ACCESS POINTS_ADD_WPS2

Editing LAN Settings of Access Points (Wireless LAN Router)

Change accordingly such as when you want to fix the IP address for the camera.

Tap “MENU”.
(Operation on this camera)

Tap MENU

The top menu appears.

Tap the “Wi-Fi” ( Wi-Fi ) icon.
(Operation on this camera)

C3B_TOP_MENU(Wi-Fi)

Tap Cursor_Right on the lower right of the screen.
(Operation on this camera)

C3-Wi-Fi_MENU_1

Tap “COMMON Wi-Fi SETTING”.
(Operation on this camera)

C3-Wi-Fi_MENU_2

Tap “ACCESS POINTS”.
(Operation on this camera)

C3_WiFi COMMON-SET ACCESSPOINT

Tap “LAN SETTINGS”.
(Operation on this camera)

C3 WiFi ACCESS POINTS UPDATE

Tap “USE” to use the selected access point.

Tap “DELETE” to delete the registered access point.

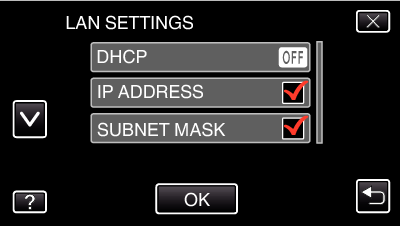

Perform the LAN settings. (when “DHCP” is set to “OFF”)
(Operation on this camera)

C3 WiFi ACCESS POINTS ADD M5

After setting, tap “OK”.

LAN settings comprise of the following items.

DHCP

ON: Obtains IP address from the DHCP server automatically.
OFF: Settings of “IP ADDRESS”, “SUBNET MASK”, “DEFAULT GATEWAY”, “PRIMARY DNS”, and “SECONDARY DNS” are required.

IP ADDRESS

Enter the IP address.

SUBNET MASK

Enter the subnet mask.

DEFAULT GATEWAY

Enter the default gateway.

PRIMARY DNS /
SECONDARY DNS

Enter the IP addresses of the primary and secondary DNS servers.
