Preparing a BD Writer (External Blu-ray Drive)

Memo

When connecting this unit to the BD writer (external Blu ray drive), use an Mini-A (male) - B (male) USB conversion cable. Please note that the supplied USB cable cannot be used for this purpose.

(Part number: QAM0852-001) * Mini-A (Male) – A (Female)
*Consult your nearest service center.

Remove the AC adapter and battery pack from this unit.

Open the LCD monitor.

C3A3 monitor open non-bat Wi-Fi

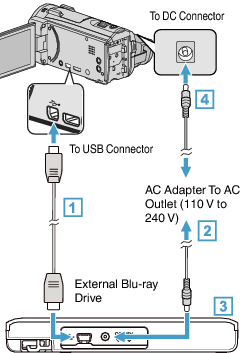

Connect the USB cable and the AC adapter.

C3A3 BD burner

Connect the USB cable of the BD writer (external Blu-ray drive) to this unit.

The USB cable provided with this unit cannot be used.

Connect the AC adapter of the BD writer (external Blu-ray drive).
Turn on the BD writer (external Blu-ray drive).
Connect the AC adapter to this unit.

This unit powers on automatically when the AC adapter is connected.

This unit turns on and the “BACK-UP” menu appears.

While the USB cable is connected, the “BACK-UP” menu is displayed.

Refer also to the instruction manual of the BD writer (external Blu-ray drive).

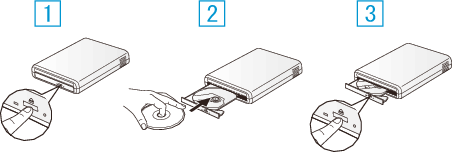

Insert a new disc.

DVDセット（BD）
Press the eject button to open the disc tray.
Load a new disc properly.
Press the eject button to close the disc tray.

Caution

Be sure to turn off the power when connecting the devices.
Otherwise, electric shocks or malfunctions may occur.

Do not connect the AC adapter provided with this unit to the BD writer.

Do not connect the AC adapter provided with the BD writer to this unit.
