You can attach the Micro Four Thirds Mount lens on this camera recorder.
Attaching the Lens (Commercially Available)
After attaching the lens, perform the VSM (Variable Scan Mapping) setting as needed.
Caution
Check that the camera recorder is turned off before attaching the lens. Attaching the lens with the power turned on can result in accident and malfunction.
When detaching the lens, do not touch the sensor or allow dust to adhere to the sensor.

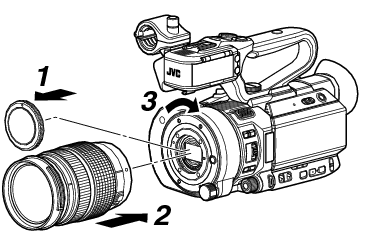

Detach the body cap.
Do not lose the body cap, keep it properly.
Attach the lens.
Align the attachment mark on the lens with the lens alignment mark (red dot) on the camera recorder, and then insert the lens onto the camera recorder.
Turn the lens clockwise until a “click” sound is heard.
Memo
To detach the lens, press the lens release button and turn the lens counterclockwise.
For details on the lens, please refer to the “INSTRUCTIONS” of the lens used.
