Setting Distribution

Set the [Record Format] according to the resolution and frame rate of the video to be distributed.

For details on the [Record Format] settings, please refer to Distributable [Record Format] and [Live Streaming Set] Combinations .

Memo

Live streaming cannot be performed in the following cases.

When [System] arrowR [Record Set] arrowR [Record Format] arrowR [System] is set to “HD+Web” or “High-Speed”

When [System] arrowR [Record Set] arrowR [Record Format] arrowR [ SlotA_B Frame Rate] is set to “24p”

Set the Resolution and Frame & Bit Rate for the video to be distributed.

Specify the settings in [Network] arrowR [Live Streaming].

Live Streaming Item
Specify the distribution protocol and related items.

Specify the distribution protocol and related items in [Network] arrowR [Live Streaming] arrowR [Streaming Server].

Streaming Server
Select the server for live streaming.

Select the distribution server in [Network] arrowR [Live Streaming] arrowR [Server].

Distributable [Record Format] and [Live Streaming Set] Combinations

When [Optional Adapter] is configured to “Disable” (H.264 streaming)

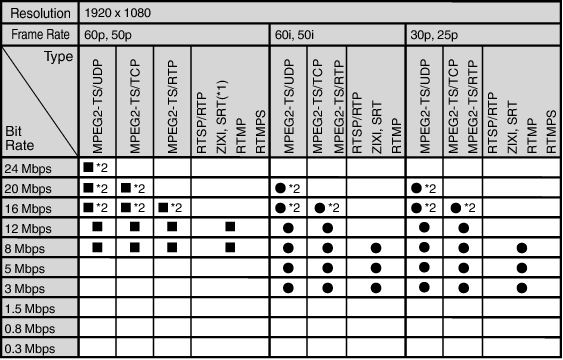

HC900 Streaming Resolution_UE_01

REC button : Distributable

STOP button : Distributable when [Format] is configured as follows.

QuickTime(H.264), Exchange (U model)

MP4(H.264) (E model)

*1:

Distribution at a bit rate of 12 Mbps is possible when [FEC] is configured to “Off”.

*2:

Distribution is disabled when [System] is configured to “HD” and the following are configured.

When [Format] is configured to “QuickTime(H.264)”, “Exchange” (U model) or “MP4(H.264)” (E model), [Overlay Function] is configured to “Enable” and [Overlay Settings] arrowR [Output] is configured to “Off”

[Overlay Function] is configured to “Enable” when [Format] is configured to “QuickTime(MPEG2)” or “MXF(MPEG2)”

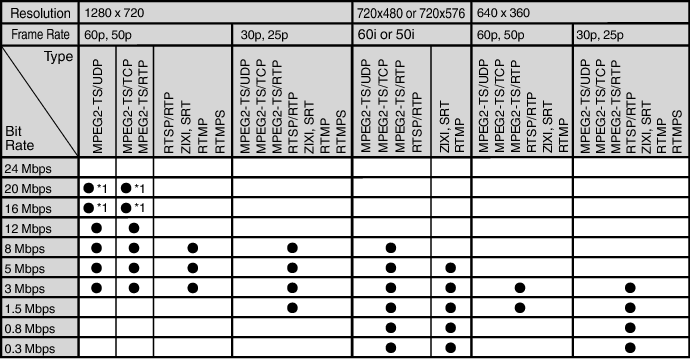

HC900 Streaming Resolution_UE_02

REC button : Distributable

*1:

Distribution is disabled when [System] is configured to “HD” and the following are configured.

When [Format] is configured to “QuickTime(H.264)”, “Exchange” (U model) or “MP4(H.264)” (E model), [Overlay Function] is configured to “Enable” and [Overlay Settings] arrowR [Output] is configured to “Off”

[Overlay Function] is configured to “Enable” when [Format] is configured to “QuickTime(MPEG2)” or “MXF(MPEG2)”



When [Optional Adapter] is configured to “Enable” (H.265/HEVC streaming using KA-EN200)

HC500 Streaming Resolution_04

Streaming at a bit rate of 8 Mbps is possible when [FEC] is configured to “Off”.
