For checking the settings of the camera recorder.
Status Screen

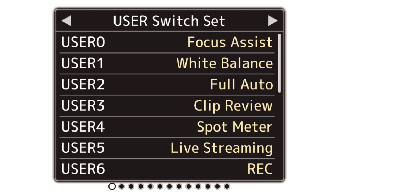

USER Switch Set Screen
For checking the status (functions assigned) of the user buttons.

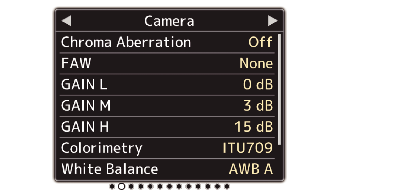

Camera Screen
For checking information related to shooting using the camera recorder.

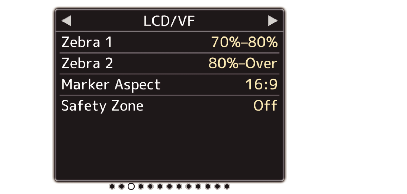

LCD/VF Screen
For checking information related to the contents displayed on the LCD monitor and viewfinder screens.

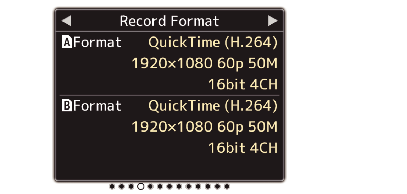

Record Format Screen
For checking settings related to the recording format.

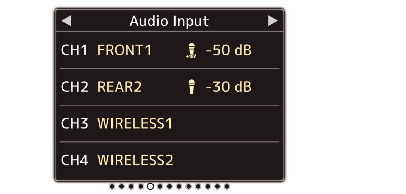

Audio Input Screen
For checking settings related to audio input channels and their input levels.

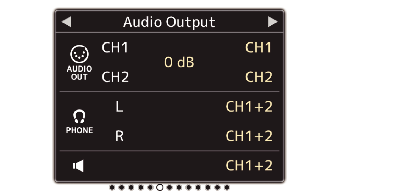

Audio Output Screen
For checking settings related to audio output channels and their output levels.

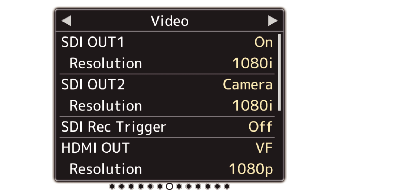

Video Screen
For checking the settings related to video output.
Power Screen
For checking the power consumption.
Memo
[System] shows the power consumption of the entire camera system (camera recorder + connecting devices) while [Connected Devices] shows the estimated power consumption of the peripheral equipments such as lens and wireless slots.
When the bar on the bar graph enters the red zone, it indicates that the power consumption has exceeded its rating. As this may result in malfunction, do keep the power consumption within the rating.
If [System] shows a value that exceeds the rating, the power to the [LIGHT], [DC OUT] (rear) and [DC OUT] (LAN) terminals is automatically cut off. This is not a malfunction. Use peripheral equipments with lower power consumption then turn on the power of this camera recorder again.

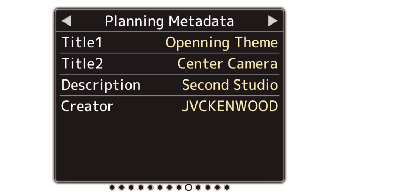

Planning Metadata Screen
For checking the current planning metadata setting.

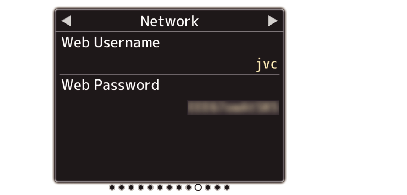

Network Screen
For checking the network login information.

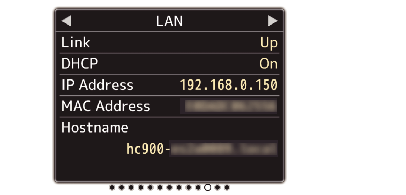

LAN Screen
For checking the network information for LAN connection.

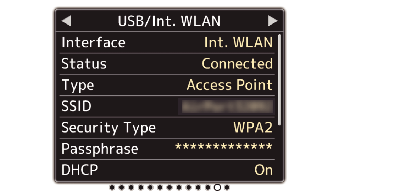

USB/Int. WLAN Screen
USB Screen
For checking the network information for the USB adapter and built-in wireless LAN connections.

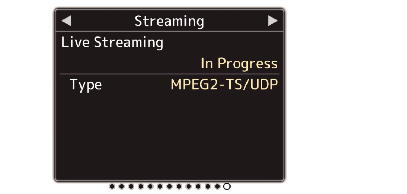

Streaming Screen
For viewing information related to live streaming.

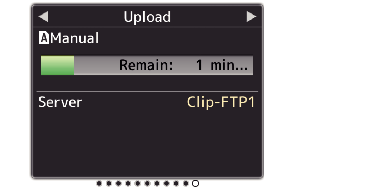

Upload Screen
For checking the FTP transfer status during an upload.
