You can add the date, time or an 8-digit hexadecimal number as the user’s bit to the recorded image.
Setting the User’s Bit
Selecting a Recording Mode
Recording date/time information to the user’s bit
Set [TC/UB]
[UB Mode] to “Date” or “Time”, and press the Set button (
).
[UB Mode] to “Date” or “Time”, and press the Set button ( ).The date or time information is recorded to the user’s bit.
Memo
When “Date” or “Time” is set, [Preset] appears as “-” and cannot be set.
“Time” is displayed in the 24-hour format.
Presetting the User’s Bit
Recording arbitrary information (8-digit hexadecimal) to the user’s bit

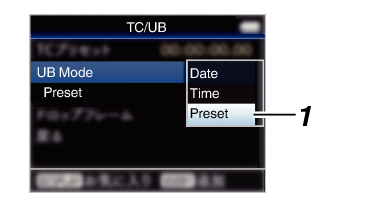

Set [TC/UB] [UB Mode] to “Preset”, and press the Set button ( ).
[UB Mode] to “Preset”, and press the Set button ( ).
Memo
When the [TC GEN] switch is set to “REGEN”, the parameter is displayed as “REGEN” and selection is disabled.
Select [TC/UB] “Preset” and press the Set button ( ).
“Preset” and press the Set button ( ).The [Preset] setting screen appears.

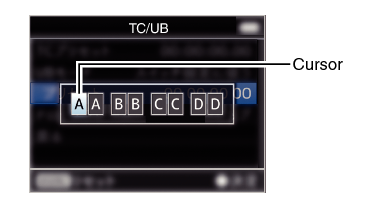

Use the cross-shaped button (
) to place the cursor at the item to set, then use the cross-shaped button (
) to change the values.
) to place the cursor at the item to set, then use the cross-shaped button ( ) to change the values.Numbers between 0 and 9 or alphabets between A and F can be specified for the user’s bit.
Memo
Press the [CANCEL/RESET] button to reset each digit to “0”. The cursor moves to the left.
Check the values and press the Set button ( ).
).The user’s bit is set and the screen returns to [TC/UB].
To cancel the setting, press the [CANCEL/RESET] button.
Press the [MENU/THUMB] button.
Returns to the normal screen.
Setting User’s Bit without Opening the Menu
Memo
Settings cannot be made in the following cases.
When the [TC GEN] switch is set to “REGEN”.
Menu screen is displayed.
The camera recorder is not in the Camera mode.

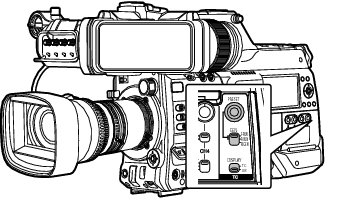

Setting the user’s bit
Set the [TC DISPLAY] switch to “UB”.
Set the [TC GEN] switch to a setting other than “REGEN”.
Press the [TC PRESET] button.
Set the user’s bit (numbers between 0 and 9, or alphabets between A and F).
Use the cross-shaped button ( ) to place the cursor at the item to set, then use the cross-shaped button ( ) to change the values.
Memo
Press the [CANCEL/RESET] button to reset each digit to “0”. The cursor moves to the left.
Check the values and press the Set button ( ).
).The user’s bit is set and the screen returns to the normal screen.
To cancel the setting, press the [TC PRESET] button.
Caution
When the camera recorder is switched to Media mode during editing, editing will be canceled and the screen will close.
When editing the user’s bit, operations of the buttons configured in [Camera Function] [User Switch Set] are disabled.
