The scoreboard can be displayed at the following positions on the screen. Create an SDP file with the desired display position in the SDP Generator and import the file to the camera recorder.
Configuring Scoreboard Display Position
|
Type |
Overlay Location |
|
|---|---|---|
|
Type 1 |
Top, Bottom |
|
|
Type 2 |
Top, Bottom |
|
|
Football |
Top, Bottom |
|
|
Basketball |
Top, Bottom |
|
|
Baseball |
Top Right, Bottom Right, Top Left, Bottom Left |
|
|
Soccer |
Small |
Top Right, Bottom Right, Top Left, Bottom Left |
|
Large |
Bottom (not changeable) |
|
|
Penalty Shoot-out |
Bottom (not changeable) |
|
|
Hockey |
Top Right, Bottom Right, Top Left, Bottom Left |
|
Type 1 :
Type 2 :

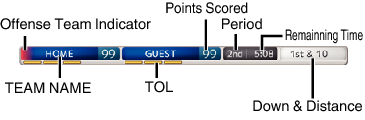

Football :

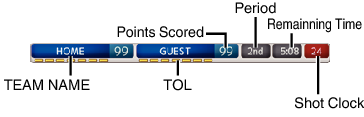

Basketball :
Baseball :
Soccer :
Select [Small], [Large] or [Penalty Shoot-out] in the Overlay Control web screen.

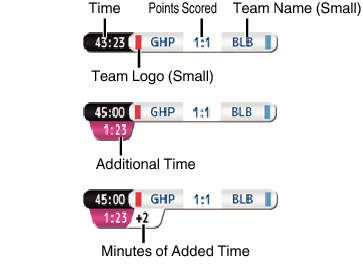

[Small]

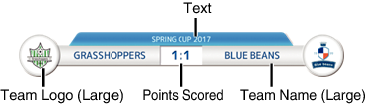

[Large]
[Penalty Shoot-out]
Hockey :
Select [Small] or [SHOOTOUT] in the Overlay Control web screen.

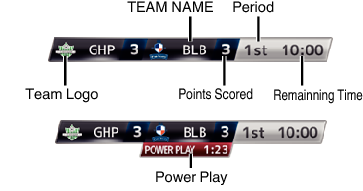

[Small]

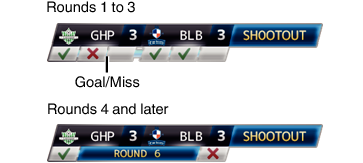

[SHOOTOUT]
None: Does not display
