Playing back

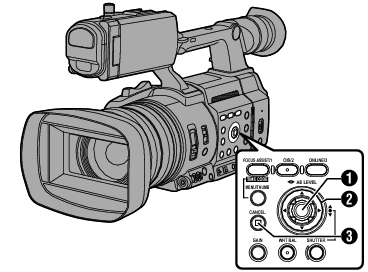

Use the operation buttons on the side control panel of the camera recorder to play back.

HC500_play

Set Button ( REC button )

Plays back/pauses the clip pointed by the cursor.

You can press the cross-shaped button ( L_botton R_botton ) to perform frame-by-frame forward playback during pause mode.

Cross-shaped Button ( U_botton D_botton L_botton   R_botton )

[ U_botton / D_botton ] Button:
Skips in the reverse or forward direction.

[ L_botton / R_botton ] Button:

During Playback:
Fast forwards in the reverse or forward direction.

While paused:
Frame-by-frame playback in the reverse or forward direction.

[CANCEL] Button

Stops playback.

In the thumbnail screen, move the cursor to the clip to be played back.

Move the cursor to the clip to be played back using the cross-shaped button ( U_botton D_botton L_botton   R_botton ).

Press the Set button ( REC button ).

Playback of the selected clip starts.

Audio Output during Playback

You can confirm the playback sound from the monitor speaker, or the headphone connected to the [ PHONE ] terminal. When a headphone is connected to the [ PHONE ] terminal, sound cannot be output from the monitor speaker.

Adjust the volume of the monitor speaker and headphone using the [MONITOR +/-] volume adjustment button on the LCD monitor section of the camera recorder.

Time Code Playback

Time code or user’s bit recorded on an SD card can be displayed on the LCD monitor or viewfinder.

Memo

The time code is also superimposed on the video signal output from the [SDI OUT] terminal.

If a section without time code is played back, the time code will stop. However, playback will continue.

Displaying Information during Shooting

During playback, pressing the [DISPLAY] button shows the display screen. Pressing the [ONLINE/3] button during shooting switches the display information between camera information display, GPS display and turning off the display.

The GPS display displays information on the recording location of the video being played back only when GPS information has been recorded.

Camera information display displays only information of Gain, Iris, Shutter and White Balance that have been recorded.

HC500_MediaDisplay info
Memo

Trimming information is displayed while trimming is in progress. In this case, pressing the [ONLINE/3] button does not switch the display.
