Operating Procedure

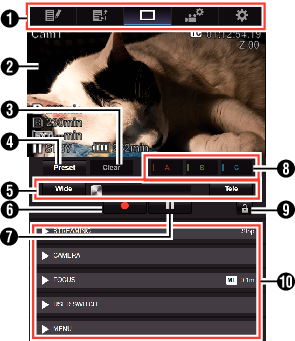

Page Switch Tab

Tap (click) this tab to move to the [Planning Metadata], [Clip Metadata], or [Settings] screen.

Live View Screen

Displays the live images.
Tap a live image to display or hide information that is displayed on the live image, such as remaining space on the media and time code.

Pressing the [MENU/THUMB] button displays the menu on the Live View screen.

[Clear] Button

Switches to the Delete Preset Zoom Position mode.

Registering/Deleting Preset Zoom

Deleting a Preset Zoom

[Preset] Button

Switches to the Register Preset Zoom Position mode.

Registering Preset Zoom

Zoom Control

Operate the zoom function by dragging the zoom button along the sliding bar.

Tap (click) the [Wide] or [Tele] button to fine-tune the zoom position.

The slide changes according to the dynamic zoom.

Dynamic Zoom

Dynamic Zoom Off:

Dynamic Zoom On:

Start Record Button

Stop Record Button

[A]/[B]/[C] Buttons

Use these buttons to perform preset registration or delete a preset data.

Function Lock Button

Locks the functions that have been set on the [Settings] screen.

Changing View Remote Function Settings

Icon	Description
	Locked
	Not locked
