Specifying Text and Images

Connect the camera recorder to a network compatible device such as a mobile device via the network.

When network connection is established between the devices, start the Web browser on the network compatible device.

Enter the following URL in the address bar of the Web browser.
HM250 Overlay_01

You can check the “IP address of camera recorder” by pressing the [STATUS] button on the camera recorder to display the Status screen and use the cross-shaped button ( L_botton R_botton ) to display the Network screen.

Enter the user name and password.

Enter the user name and the password on the login screen to display the main page of the camera.

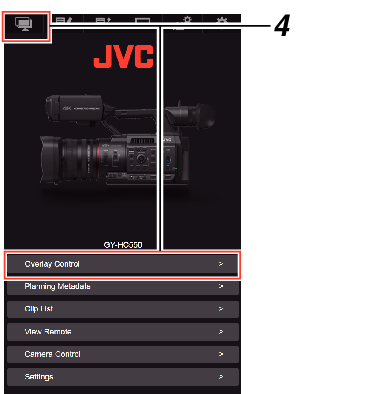

Press the overlay control icon at the top of the screen or the [Overlay Control] button to display the Settings screen.
HC500 Overlay_02
Press the [Update] button to reflect the specified text and images in the overlay.
