About the Operation Lock Feature (KEYLOCK)

You can use this feature to prevent erroneous camera operation.

HC500_KEYLOCK

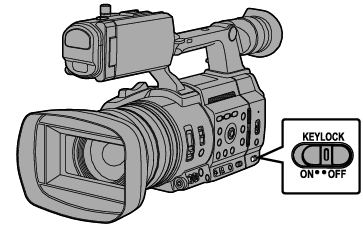

Set the [KEYLOCK] switch to “ON”.

The operation lock turns on, and an operation lock icon ( OpeLock ) appears on the display screen.

The operation lock function is turned off when the [KEYLOCK] switch is set to “OFF”.

Memo

The operation lock feature is only valid in the Camera mode.

The following remote operations are possible even when the operation lock feature is turned on (“On”).

Remote operation from the wired remote control connected to the [REMOTE] terminal.

Remote operation of the camera through access via a browser on devices such as a smartphone, tablet terminal, or PC.

Operation lock does not apply to the following buttons and switches.

[POWER ON/OFF] switch

[ND FILTER] switch

[TC IN/OUT] switch

Focus Ring

Zoom Ring

Iris Ring

Zoom Lever at the Grip

Zoom Lever on Handle

[FIX/VAR/OFF] switch

Memo

Operation lock does not apply to the REC button if “Keylock Except Rec” is selected in [Camera Function] arrowR [KEYLOCK].
