> Using the Different Features (Using the App) > Using the multipoint function

Using the multipoint function

You can pair the earphones with two devices (mobile phone, smartphone, etc.) at the same time and go into standby or switch the device for playing music (multipoint).

Music cannot be played or a call cannot be answered on two devices simultaneously.

We do not guarantee all operations of the BLUETOOTH device. If the BLUETOOTH device cannot be operated using the System, operate on the BLUETOOTH device.

Depending on the Bluetooth device in use, the second device may be disconnected while the first device is in use.

When connecting the computer and smartphone using the mutlipoint, starting a conference or call on the computer may cause the System to lose connection with the smartphone and unable to reconnect depending on the surrounding environment and BLUETOOTH device. The connection will reestablish once the conference or call is ended.

Using the multipoint function for pairing

1Pair the System with first BLUETOOTH device.

Refer to Connecting (Power On).

Connected_Multipoint_SMP1_S99N_S95N + Connected_Multipoint_SMP1_S99N_S95N

First Device

2Set the Bluetooth setting of the first device to “Off”.

Connecting_Multipoint_SMP1_OFF + Connecting_Multipoint_SMP1_OFF

First Device

3Turn off the System, then turn on again.

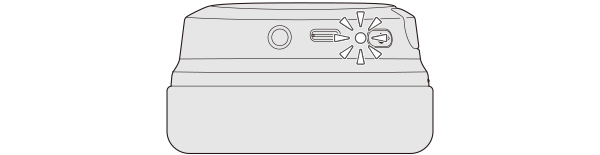

After a short while, the indicator starts to flash quickly and repeatedly.

connecting_multipoint_S99N_S95N

4Pair the System with the second BLUETOOTH device.

Refer to Connecting (Power On).

Connected_Multipoint_SMP2_S99N_S95N + Connected_Multipoint_SMP2_S99N_S95N

Second Device

When the connection is completed, the indicator starts to flash slowly.

white_flash_S99N_S95N

5Set the Bluetooth setting of the first device to “On”. If it is not reconnected automatically, select this earphone unit again.

Connecting_Multipoint_SMP1_ON + Connecting_Multipoint_SMP1_ON

First Device

When the earphones are successfully connected to the second device, the indicator starts to flash slowly.

white_flash_S99N_S95N

During multipoint connection, you can answer incoming calls from the second BLUETOOTH device even while listening to music on the first BLUETOOTH device.

If the earphones are not connected to the Bluetooth device, select this earphone unit on the Bluetooth device to establish connection.

Answering an incoming call while multipoint is in use

The following are steps for operating the earphones to answer an incoming call to the second Bluetooth device while you are in a call to the first Bluetooth device.

Multipoint_Overview_S95N_U + Multipoint_Overview_S95N_U

First Device

Second Device

Incoming call from second Bluetooth device while in a call to the first Bluetooth device

In a Call

Incoming Call

You will hear a call alert when there is an incoming call to the second Bluetooth device.

Multipoint_Flow_1_S95N_U + Multipoint_Flow_1_S95N_U

Press the Multi-function button once

Remains connected

Switches to answering the call to the second Bluetooth device

In a Call

To end the call on the second Bluetooth device, press and hold the Multi-function button for 1 second

Returns to answering the call to the first Bluetooth device

In a Call

To end the call on the first Bluetooth device, press and hold the Multi-function button for 1 second

Ends call

If the Bluetooth device is a computer, operate the computer to answer or end a call.

During multipoint connection, operating the remote control of the earphones controls the operation of the Bluetooth device that is currently playing music or in a call. It does not control the operation of the other device.

If you are not playing music or in a call on both Bluetooth devices, operating the remote control controls the operation of one of the Bluetooth devices but not the other. You cannot select which Bluetooth device to control in this case. If you want to do so, play back music or make a call on the Bluetooth device you want to use.

Multipoint_Flow_2_S95N_U + Multipoint_Flow_2_S95N_U

Press and hold the Multi-function button for 1 second

Continues call on the first Bluetooth device

Declines incoming call to the second Bluetooth device

In a Call

To end the call on the first Bluetooth device, press and hold the Multi-function button for 1 second

Ends call

If the Bluetooth device is a computer, operate the computer to answer or end a call.

During multipoint connection, operating the remote control of the earphones controls the operation of the Bluetooth device that is currently playing music or in a call. It does not control the operation of the other device.

If you are not playing music or in a call on both Bluetooth devices, operating the remote control controls the operation of one of the Bluetooth devices but not the other. You cannot select which Bluetooth device to control in this case. If you want to do so, play back music or make a call on the Bluetooth device you want to use.

Other Operations of the Multipoint Function

Press Multi-function button once to pause music playback on the first Bluetooth device. Operate the second Bluetooth device to play back music.

Multipoint_Flow_3_S95N_U + Multipoint_Flow_3_S95N_U

Press the Multi-function button once

Pause music playback on the first Bluetooth device

Operate the second Bluetooth device to play back music

Pause

Play
