Displays the clip information (properties).
Thumbnail Screen
“Standard Screen” and “Detailed Screen” are available.
Use the [DISPLAY] button to switch between the screens.
Thumbnails are displayed in order of recording from the oldest to most recent.

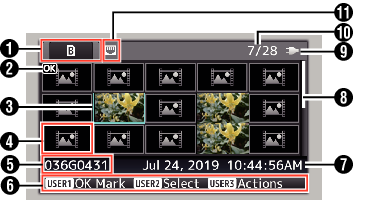

Standard screen
Recording Media Information
Displays the status when repair is required for the selected recording media or the status of the write-protect switch for the SD card.
The inserted recording media will not be displayed if [System] is different.
Use the [SLOT SEL] button to switch between slots A and B. Clips from different slots cannot be displayed at the same time.
:
Write-protect switch of the SD card in slot A is set.
:
SD card in slot B needs to be restored or formatted, or is an unsupported SD card.
:
SSD media in [EXT.SLOT]

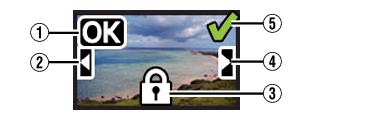

Clip Mark
OK Mark
Clip is appended with OK mark.
Memo
Clips appended with OK marks cannot be deleted on the camera recorder.
Continued From Mark
This mark indicates that the current clip is continued from another SD card when recording is divided and made on several SD cards.
Uneditable Mark
This mark indicates that an OK mark cannot be appended to or deleted from the clip, and the clip cannot be deleted.
Continue Mark
This mark indicates that recording of the current clip is continued to another SD card when recording is divided and made on several SD cards.
Check Mark
A green check mark is displayed when the clip is selected.
Magenta and gray check marks are displayed in multiple selection mode.
Cursor
Clip to be worked on. Use the cross-shaped button (
) to move the cursor.
Thumbnail Substitution Display
A clip with corrupted management information. It cannot be played back even if you press the Set (Play) button.
A clip that cannot be played back nor displayed in thumbnail with the current video format settings.
It cannot be played back even if you press the Set (Play) button.
It cannot be played back even if you press the Set (Play) button.
Memo
This is dependent on the [System], [Format], [Resolution], [Frame Rate] and [Bit Rate] settings in the [System]
[Record Set] [Record Format] menu.
Clip Name
The file name (clip number) of the selected clip is displayed.
Operation Guide
Displays a guide for the current operation buttons.
The action selection screen is displayed when the [ONLINE/3] button is pressed.
Recording Start Time
Displays the recording start time of the clip.
Memo
The date/time display is dependent on the settings in [System] [Date Style]/[Time Style].
Scroll Bar
Indicates the scroll position.
Black space below the scroll bar (white) indicates that there are more pages.
When the scroll bar (white) is at the bottom, this indicates the last page.
Remaining Battery Power
Number of Clips
If none of the clips are selected, the “running number/total number of clips” of the clip to be displayed appears.
Even if only one clip is selected, the number of selected clips in the current slot is displayed.
Network Connection Icon
The network connection status is displayed.

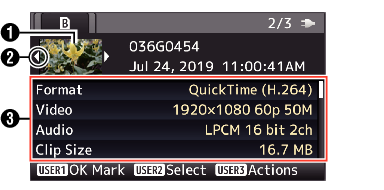

Detailed screen
Items that are common with the Standard screen will not be described. Refer to “Standard screen ”.
Thumbnail
Thumbnail of the clip selected by the cursor. Use the cross-shaped button ( ) to move the cursor.
Scroll Mark (
)
If there are previous clips, appears on the left.
If there are more clips, appears on the right.
The marks will not be displayed if there are no clips before and after the current clip.
Metadata
Metadata of the clip pointed by the cursor.
You can use the cross-shaped button ( ) to scroll.
