The power status is displayed on the display and menu screens.
Power Status Display
Viewfinder Screen and LCD Monitor
|
Display |
Description |
|---|---|
|
|
Currently powered by a battery. Memo
You can set the display using [LCD/VF] |
|
|
Acquisition of battery information may fail if a genuine battery is not used. |
|
|
Appears when an error occurs during battery charging. |
|
|
Currently powered by an AC adapter. |
|
|
Camera recorder battery charging in progress. |
7.4V
30%
RES
Memo
If the supplied battery (or equivalent battery sold separately) is not used, the battery mark which indicates the battery level may not appear.

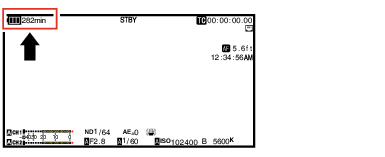

Display Screen
Menu Screen
Warnings by Lamp and Warning Tone
Warning status is indicated by tally lamp and warning tone.
The tally lamp blinks.
The warning tone is output from the monitor speaker or [
] terminal.
Memo
You can specify whether to turn on the warning tone as well as setting the volume in [A/V Set]
[Audio Set] [Alarm Level].
In the event that the battery level runs low while it is being used, the camera recorder will stop operating automatically.
Caution
The remaining battery power and time are displayed as they are from the battery information. Accurate data may not be displayed depending on the battery condition. Replace the battery as soon as possible when the remaining battery power and time are low.
