Adjust the brightness using Iris, Gain, Shutter speed and ND filter according to the brightness of the object.
Adjusting the Brightness Automatically: Automatic Brightness Adjustment (AE) Mode
Iris, Gain, Shutter speed and ND filter are automatically adjusted according to the brightness of the object to maintain optimum brightness.
To set only the Iris, Gain and Shutter to Auto mode, set the [FULL AUTO] switch to “OFF” before setting each item to the automatic adjustment mode.
This can be configured using the cross-shaped button (
) on the side of the camera recorder unit.

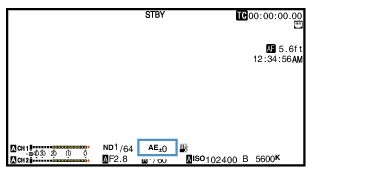

This can be configured in [Camera Function] [AE Level].

Setting the [FULL AUTO] switch to “ON” to enter the Full Auto mode also activates the automatic brightness adjustment (AE) mode. In this case, white balance is also switched forcibly to auto mode.
The convergence speed of the automatic adjustment for automatic brightness adjustment (AE) can be set in the menu.
If one or more of the items (Gain, Iris and Shutter) have been set to Auto mode, the value of the corresponding items when the user button that is assigned “AE Lock” is pressed can be fixed.
If one or more of the items (Gain, Iris and Shutter) have been set to Auto mode, the automatic brightness adjustment (AE) mode is enabled.
Adjusting the Brightness Manually
When the [FULL AUTO] switch is set to “OFF”, some or all of the items (Iris, Gain and Shutter) can be manually adjusted.
The brightness cannot be manually adjusted in the Full Auto mode.
If Iris, Gain and Shutter Speed are manually adjusted, the [AE Level] setting is temporarily disabled.
