Setting Distribution

Set the [Record Format] according to the resolution and frame rate of the video to be distributed.

For details on the [Record Format] settings, please refer to Distributable [Record Format] and [Live Streaming Set] Combinations .

Memo

Live streaming cannot be performed in the following cases.

When [System] arrowR [Record Set] arrowR [Record Format] arrowR [System] is set to other than “HD” or “SD”

When [System] arrowR [Record Set] arrowR [Record Format] arrowR [ SlotA_B Frame Rate] is set to “24p”

Set the Resolution and Frame & Bit Rate for the video to be distributed.

Specify the settings in [Network] arrowR [Live Streaming].

Live Streaming Item

Specify the distribution protocol and related items.

Specify the distribution protocol and related items in [Network] arrowR [Live Streaming] arrowR [Streaming Server].

Streaming Server

Select the server for live streaming.

Select the distribution server in [Network] arrowR [Live Streaming] arrowR [Server].

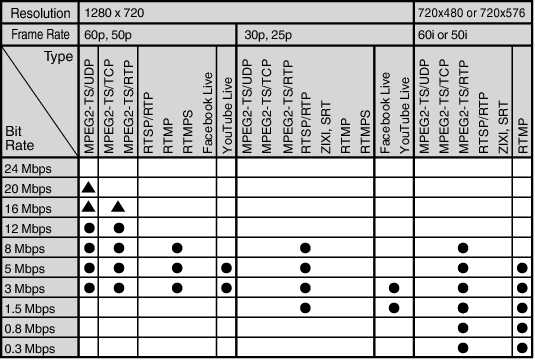

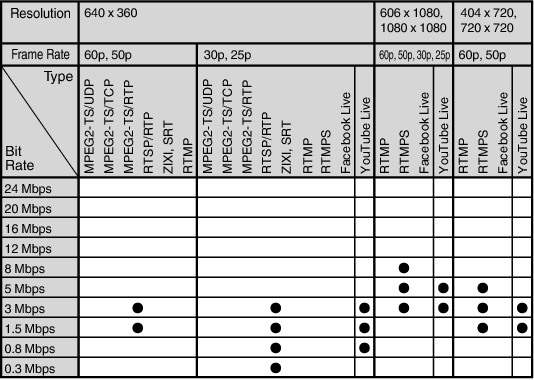

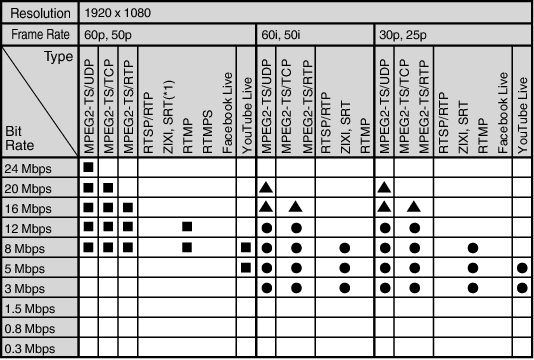

Distributable [Record Format] and [Live Streaming Set] Combinations

When [Optional Adapter] is configured to “Disable” (H.264 streaming)

REC button : Distributable

STOP button : Distributable when [Format] is configured as follows.

QuickTime(H.264), Exchange (U model)

MP4(H.264) (E model)

U_botton : When [Format] is configured to “QuickTime(MPEG2)” or “MXF(MPEG2)”, configuring [Time Stamp] to “On” or configuring [Overlay Function] to “Enable” disables distribution. 550

*1:

Distribution at a bit rate of 12 Mbps is possible when [FEC] is configured to “Off”.

REC button : Distributable

U_botton : When [Format] is configured to “QuickTime(MPEG2)” or “MXF(MPEG2)”, configuring [Time Stamp] to “On” or configuring [Overlay Function] to “Enable” disables distribution. 550

REC button : Distributable

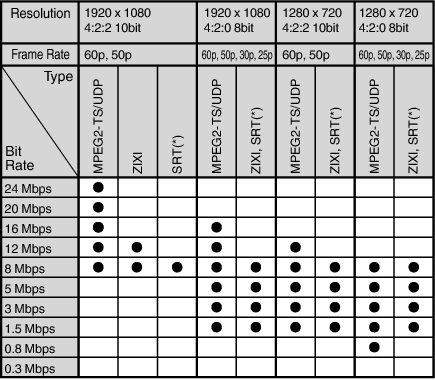

When [Optional Adapter] is configured to “Enable” (H.265/HEVC streaming using KA-EN200)

Streaming at a bit rate of 8 Mbps is possible when [FEC] is configured to “Off”.
