Importing and Configuring Settings for SDP Files for Broadcast

Memo

When the recording format is “HD+Web”, the scoreboard display is always overlaid on the “Web” recording clip.

The scoreboard display is always overlaid on live video streaming.

The settings cannot be changed during recording or live streaming.

Set [Overlay Settings] arrowR [Overlay Function] to “Enable”.

When [System] is configured to a setting other than “HD” and “HD+Web”, this item is fixed at “Disable”.

Use [Overlay Settings] arrowR [Import User Layout] to import the file.

To use an overlay other than the SDP file at factory default, import the SDP file for broadcast to the camera.

Select the file for overlay from the imported file in [Overlay Settings] arrowR [Layout].
Select “Broadcast” in [Overlay Settings] arrowR [Type].

When the SDP file selected in [Layout] is created in a type other than “Broadcast”, or when the recording resolution of the “Broadcast” type of the SDP file is different from the recording resolution of the current camera, “Broadcast” is not displayed in [Type].

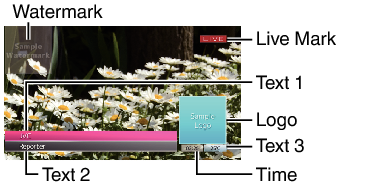

Broadcast:

HM250 Overlay_broadcast

None: No display

Select the display in [Overlay Settings] arrowR [Output] arrowR [HD Recording]/[HDMI]
HD Recording
HDMI

Entering Overlay Text

Connect this camera recorder to the network.
Connecting to the Network
Connect from a web browser.
Connecting from a Web Browser
When the web browser screen appears, press the overlay icon at the top of the screen or the [Overlay Control] button to display the input screen.
Overlay icon
One of the following screens appears according to the setting for [Type] in the camera recorder menu.
HM250 Overlay_menu

Memo:
Range <A> Text 1
Range <B> Text 2
Range <C> Text 3
Range <D> Time
Range <E> Logo
Range <F> Live mark

Shows the current overlay status.

Text selection area
The highlighted text is overlaid and displayed.

[ D_botton ] [ U_botton ] Button
Selects the text.

[Edit] Button
Switches to the text entry mode.

[1][2][3][4] Button
Selects the image.

[Display] Button
Displays or hides specific areas.

Unit Button
Selects the unit to add after Text 3.

[Update] Button
Reflects the changed content in the overlay display.

[Overlay] Button
Displays or hides the overlay.

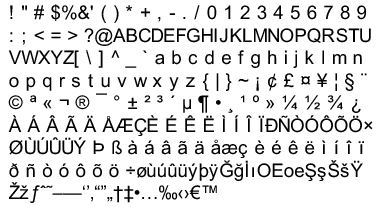

Text that can be entered in [Text 1], [Text 2], and [Text 3] are as follows:

GY-HM250_Inputable_character
Memo

Not more than 5 lines can be entered for Text 1 and Text 2 each. Up to 63 bytes can be entered for each line.

Up to 5 bytes can be entered for Text 3.

For some types of text, the text that has been entered may not be displayed fully on the overlaid display. Check the display in advance.
