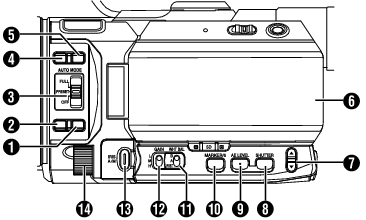

Side Control Panel
[LOCK/10] AE/FAW Lock/User 10 Button
Allows you to temporarily fix the values of the FAW (Full-time Auto White Balance) function and functions with Iris, Shutter and Gain set to automatic.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[AF/MF] Focus Selection Button
[AUTO MODE FULL/PRESET/OFF] Auto Mode Switch
For switching the Auto mode.
This camera recorder is set to Full Auto mode in the factory default.
[F.ASSIST/1] Focus Assist/User 1 Button
For switching the focus assist function ON or OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[TC/2] Time Code/User 2 Button
Displays the time code setting screen.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
LCD monitor
/
Volume Buttons/[+/-] Selection Buttons
Switches the audio monitor and adjusts the monitor speaker/headphone.
For switching the shutter speed and setting the automatic brightness adjustment (AE) level.
[SHUTTER] Shutter Speed Button
For switching the shutter speed in the Manual Shutter mode. Press and hold the button to switch between Automatic Shutter mode and Manual Shutter mode.
[AE LEVEL] Automatic Brightness Adjustment (AE) Level Setting Button
Sets the automatic brightness adjustment (AE) level. Press and hold the button to switch between “AE Level Setting Mode” and “Recommended Fixed Level (AE: ±0)”.
[MARKER/6] Marker Display/User 6 Button
For switching the marker display ON or OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[WHT BAL B/A/PRST] White Balance Switch
[GAIN L/M/H] Gain Switch
[IRIS A/M] Auto Iris/Manual Iris Button
Iris Dial
You can assign the dial for “Shutter” or “AE Level” adjustment in [Main Menu]
[Camera Function] [Iris Dial].
