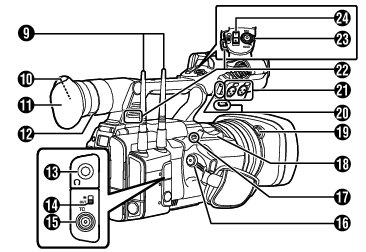

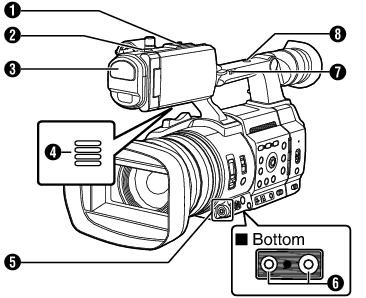

Names of Parts
Shoe
For mounting separately sold lights and accessories.
Tally Lamp
Built-in Microphone
Monitor Speaker
Cross-Shaped Button (
)/Set Button (
)
For operating the menu and cursor and for confirming a setting, as well as for configuring the settings for time code and user’s bit.
When a function is assigned to the cross-shaped button, it functions as a user button.
Tripod Mounting Screw Hole
[FIX/VAR/OFF] zoom speed switch
For switching the zoom speed of the zoom lever
at the handle.
Accessory Mounting Screw Hole
Wireless LAN Antenna Terminal
Viewfinder
Eyecup
Prevents external light from entering the viewfinder screen and cameraman’s vision.
Visibility Adjustment Lever
[
] Headphone Jack (Φ3.5 mm)
[TC IN/OUT] switch
[TC] TC Input/Output Terminal
[REC] Record Trigger Button
Starts/stops recording.
This switch is interlocked with the [REC/HOLD] button
at the top of the handle.
[EXP.FOCUS/9] Expanded Focus Assist/User 9 Button
For switching the expanded focus ON or OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
Zoom Lever at the Grip
Hood Release Button
External Microphone Cable Clamp
[INPUT1/INPUT2] Audio Input Terminal 1, 2 (XLR 3-pin x 2)
Shoulder Belt Mount (x2)
For mounting a shoulder belt (sold separately).
Be sure to use a shoulder belt with the strength to withstand the weight of this camera recorder.
If the shoulder belt is not properly attached, the camera recorder may fall and cause injuries.
Check the [INSTRUCTIONS] provided with the shoulder belt before using.
[REC/HOLD] Record Trigger Button/Lock Switch
Starts/stops recording.
Set the switch to [HOLD] to lock the [REC] Trigger button.
This switch is interlocked with the [REC] button
on the grip.
[REC] button on the grip is not locked.
Zoom Lever on Handle
