Specifications

Power

DC 12 V

Power consumption

Approx. 12 W
Approx. 10 W
(When recording in the factory default settings using the viewfinder.)

Mass

Approx. 2.5 k (with battery)

Approx. 2.4 k (with battery)

Allowable operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Allowable operating humidity

30 %RH to 80 %RH

Allowable storage temperature

-20 °C to 50 °C (-4 °F to 122 °F)

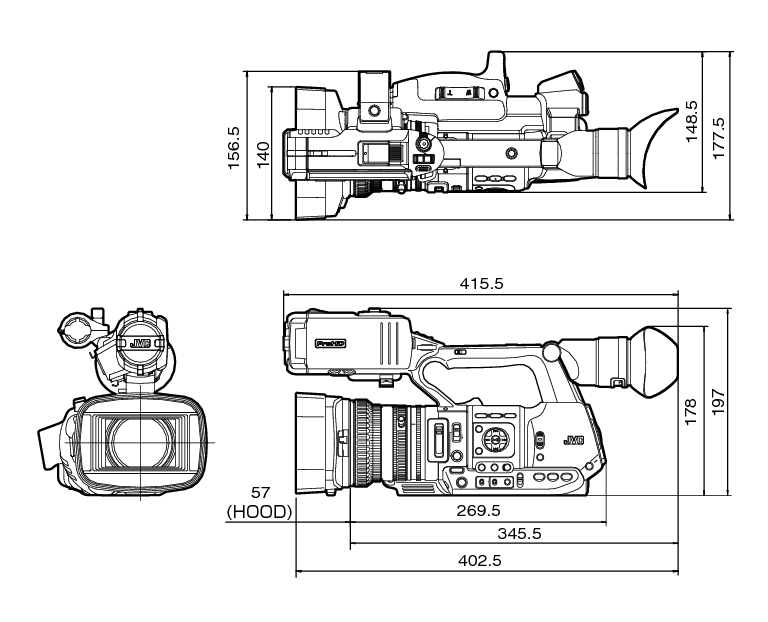

Dimensions (W × H × D)

177.5 mm × 197 mm × 415.5 mm

[HD/SD SDI] output terminal (480i or 576i: Downconverted; 720p/1080i: embedded audio), BNC (unbalanced)

HD-SDI

Compliant with SMPTE ST292

SD-SDI

Compliant with SMPTE ST259

[HDMI] Output Terminal

Type A

[INPUT1/INPUT2] terminal

[MIC]

-50 dBu, 3 k , XLR (balanced),
+48 V output (phantom power supply)

[LINE]

+4 dBu, 10 k , XLR (balanced)

[AUX] terminal

-22 dBu, 10 k , 3.5 mm stereo mini jack (unbalanced)

[AV] terminal

Φ3.5 mm 4-pin mini jack

Video signal

1.0 V (p-p)

Audio signal

-8 dBu (during reference level input), 1 k (unbalanced)

[ ] terminal

Φ3.5 mm mini jack (stereo)

[REMOTE] terminal

Φ2.5 mm mini jack (stereo)

[ ] terminal

[DEVICE]

Mini USB-B type, USB 2.0, slave function (mass storage class) only

[HOST]

USB-A type, USB2.0, network connection function only

[TC] terminal

[IN]

1.0 V (p-p) to 4.0 V (p-p) high impedance

[OUT]

2.0 ± 1.0 V (p-p) low impedance

Lens

Fujinon F1.6, 23x, f=4.1 mm to 94.3 mm
(35 mm conversion: 29 mm to 667 mm)

Filter diameter

Φ72 mm

Image pickup device

1/3-inch Progressive CMOS

Color separation prism

F1.6, 3-color separation prism

Sync system

Internal sync (built-in SSG)

Optical filter

OFF, 1/4, 1/16, 1/64

Gain

-6dB, -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux (30dB, 36dB), AGC

Electronic shutter

1/4 to 1/10000, EEI

Variable Frame Rate

2/30-60/30fps, 2/25-50/25fps, 2/24-60/24fps

LCD monitor

3.5-inch LCD, 16:9, 920K pixels

Viewfinder

0.45-inch LCOS, 1.22M pixels (852 x 480 x 3)

Supported media

SDHC/SDXC

Slots

x 2

Recording time

Approx. 25 minutes (8 GB SD card, 35 Mbps, VBR mode)

HD mode
(MOV/MP4/MXF: MPEG-2)
(MOV/MP4: MPEG-2)

Video recording file format

QuickTime File Format (For Final Cut Pro)/MP4 File Format/MXF File Format
QuickTime File Format (For Final Cut Pro)/MP4 File Format

Video

HQ mode

MPEG-2 Long GOP VBR, 35 Mbps (Max) MP@HL,
1920x1080/59.94i, 29.97p, 23.98p, 50i, 25p
1440x1080/59.94i, 50i
1280x720/59.94p, 29.97p, 23.98p, 50p, 25p

SP mode

MPEG-2 Long GOP CBR, 18.3 Mbps MP@HL (720p)/25 Mbps MP@H14 (1080i)
1440x1080/59.94i, 50i
1280x720/59.94p, 50p

Audio

LPCM 2ch, 48 kHz/16 Bit

HD mode (AVCHD)

Video recording file format

AVCHD File Format

Video

HQ mode

MPEG-4 AVC/H.264, 28 Mbps (Max)
1920x1080/59.94p, 50p
MPEG-4 AVC/H.264, 24 Mbps (Max)
1920x1080/59.94i, 50i

SP mode

MPEG-4 AVC/H.264, 18 Mbps (Max)
1920x1080/59.94i, 50i

LP mode

MPEG-4 AVC/H.264, 9 Mbps
1440x1080/59.94i, 50i

EP mode

MPEG-4 AVC/H.264, 5 Mbps
1440x1080/59.94i, 50i

Audio

Dolby Digital 2ch, 48 kHz/16 Bit, 256 kbps

HD mode (MOV: H.264)

Video recording file format

QuickTime File Format

Video

XHQ Mode

MPEG-4 AVC/H.264, 50 Mbps (Max)
1920x1080/59.94p, 59.94i, 29.97p, 23.98p, 50p, 50i, 25p

UHQ Mode

MPEG-4 AVC/H.264, 35 Mbps (Max)
1920x1080/59.94i, 29.97p, 23.98p, 50i, 25p

Audio

LPCM 2ch, 48 kHz/16 Bit

SD mode (MOV: H.264)

Video recording file format

QuickTime File Format

Video

MPEG-4 AVC/H.264, 8 Mbps
720x480/59.94i (U model only),
720x576/50i (E model only)

Audio

LPCM 2ch, 48 kHz/16 Bit

Web mode (MOV: H.264)

Video recording file format

QuickTime File Format

Video

HQ mode

MPEG-4 AVC/H.264, 3 Mbps
960x540/29.97p, 23.98p, 25p

LP mode

MPEG-4 AVC/H.264, 1.2 Mbps
480x270/29.97p, 23.98p, 25p

Audio

μ-law 2ch, 16 kHz

Streaming mode

1920x1080/59.94i, 50i Audio AAC 128 k 12/8/5/3 Mbps
1280x720/29.97p, 25p Audio AAC 128 k 8/5/3/1.5 Mbps
720x480/59.94i 720x576/50i Audio AAC 128 k/64 k/32 k 8/5/3/1.5/0.8/0.3 Mbps
640x360/29.97p, 25p Audio AAC 32 k 3/1.5/0.8/0.3 Mbps

Warranty Card (U model only)

1

INSTRUCTIONS (BASIC)

1

AC Adapter

1

Power Cord (U model: 1, E model: 2)

Battery

1

Large Eyecup

1
