Connecting from a Web Browser 660

TOP

You can access the web functions of this camera recorder via a web browser on devices such as a smartphone, tablet terminal, or PC.
Make the necessary preparations for connection in advance.

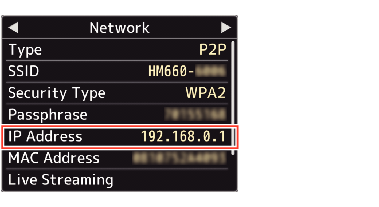

Set the camera recorder to the Camera mode, and display the [Network] (status) screen.

Press the [STATUS] button on the camera recorder to display the status screen.
Press the cross-shaped button ( L_botton R_botton ) to display the [Network] screen.

Check the displayed [IP Address].

NetworkSTA_02_660
Start up the web browser on the terminal you wish to connect to the camera recorder, and enter the [IP Address] in the address field.
(Example: 192.168.0.1)

If “192.168.0.1” is displayed in [IP Address], enter “http://192.168.0.1”.

Adress_01_660

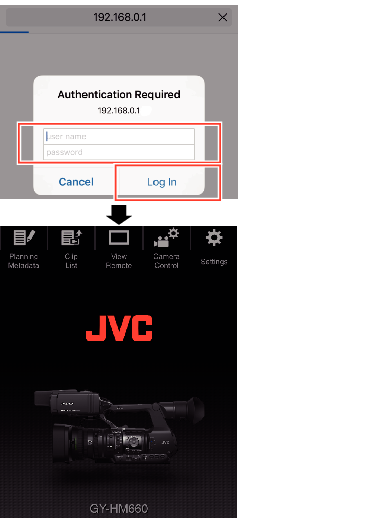

Enter the user name and password.

Enter the user name (prohd) and the password (initial password: 0000) on the login screen to display the main page of the camera.

WebTop_RogIn_660
Memo

The password can be altered in [Main Menu] arrowR [System] arrowR [Network]/[Settings] arrowR [Web] arrowR [Change Password].
