Supplies power to an externally-connected wireless receiver.

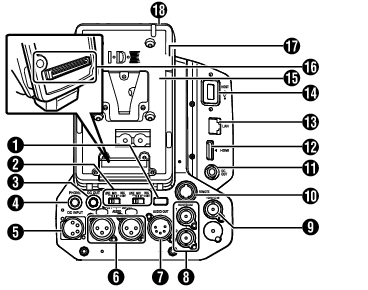

Rear Terminal
Back Tally Lamp (Rear)
[AUDIO INPUT1/2] Switch
[DC OUT] Terminal (Rear)
Memo

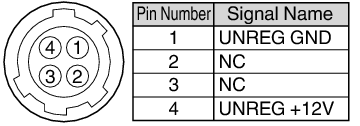

The pin configurations for
and
are the same.
Caution
Do not connect it to any device other than an external wireless receiver.
[PHONE] Terminal (Φ3.5 mm)
[DC INPUT] Terminal
Input terminal for DC 12 V power supply. For connecting a separately sold AC adapter.
[AUDIO INPUT1/2] Terminal (XLR 3-pin)
[AUDIO OUT] Terminal (XLR 5-pin)
Outputs audio signals of AUDIO CH1/CH2 or CH3/CH4.
Audio signals are output according to the setting in [A/V Set]
[Audio Set] [AUDIO OUT Ch.].
[HD/SD SDI OUT1/2] Terminal
[HD/SD SDI IN] Terminal
[REMOTE] Terminal
[DC OUT] (LAN) Terminal
Supplies power to devices such as a mobile router that is connected to the [LAN] terminal.
Memo
The pin configurations for and are the same.
[HDMI] Output Terminal
[LAN] Terminal
For connecting the LAN cable.
[HOST] USB Host Terminal
For connecting a USB adapter according to the intended purpose when you are connecting the unit to a network.
Caution
When [System] [Record Set] [Record Format] [System] is configured to “High-Speed”, network cannot be used via wireless LAN
or the [HOST] terminal (USB). Configure as follows in this case.
Set [Network] [Connection Setup] [USB/Int. WLAN] to “Off”.
Unplug the USB network adapter
Note that camera operation will come to an emergency stop and the power will turn off if the above steps are not performed.
File data may be damaged if this happens while recording is in progress.
Battery Loading Folder
The shape varies across the U and E models.
The E model is used in the illustration here.
Expansion Unit Terminal
Terminal for connecting a FS-790 (sold separately) or other units.
Memo
Remove the battery loading folder when using this terminal.
D-TAP terminal (IDX)
D-TAP terminal (Anton/Bauer)
