You can connect this unit to a DLNA compatible TV wirelessly to playback still images on this unit on the TV screen. (This function may not be available depending on the DLNA device in use.)
-
- Using Wi-Fi (GZ-EX355/GZ-EX310)
-
Image Monitoring on TV (TV MONITORING)
Image Monitoring on TV ( TV MONITORING )
Connect via access point (wireless LAN router) at home.
What You Need
DLNA compatible device
Wireless LAN router (use a product that has a Wi-Fi certification logo)
Settings Required in Advance
1 Connect the camera to the access point (wireless LAN router).
2. Connecting the DLNA compatible device to the access point (this function is available for a connection via cables as well)
*The above settings are not necessary if they have already been set for other functions.
Operation Method
Tap “MENU”.
(Operation on this camera)
The top menu appears.
Tap the “Wi-Fi” (
) icon.
(Operation on this camera)
_UJDCILaupoooxz.png)
Tap “TV MONITORING” (
).
(Operation on this camera)
Tap “START” (
).
(Operation on this camera)

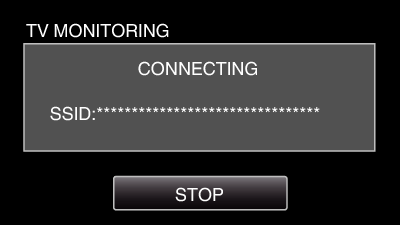

Start making a connection.
(Operation on this camera)

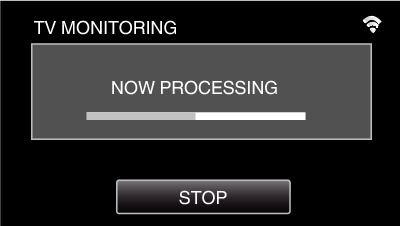

Connection in progress
After the connection is completed, wait for the DLNA device to start up.
(Operation on this camera)
If a considerable number of videos/still images are recorded in the camera, it may take some time to start.

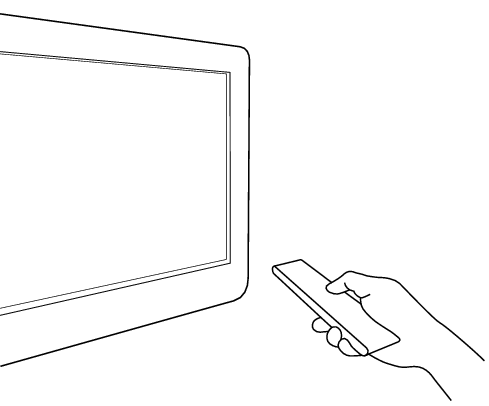

Operate from the DLNA device
From the DLNA device, access to the still image folder on Everio to select the images to playback.
For operation details, refer to the instruction manual of the DLNA device in use.

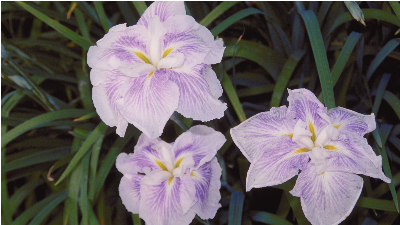

Images appear on the monitor of the DLNA device
(Operation on DLNA device)
From the following instructions, perform operations on the DLNA device.
For details on using the TV, refer to the instruction manual of the TV in use.
Memo
If the DLNA compatible TV in use cannot detect Everio, tap “STOP” to start from the step 1 again.
Caution
This function is not designed for disaster or crime prevention.
We do not guarantee the compatibility of all the DLNA compatible TVs.
This function is available when a connection to the access point is made with wires as well.
To prevent the situation of forgetting to turn off the power, this unit will turn off automatically after 10 days of continuous usage.
