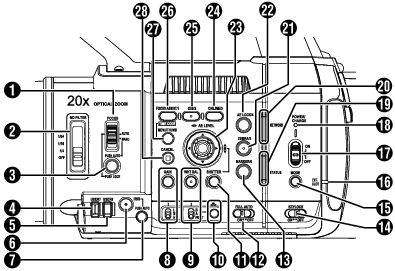

Side Control Panel
[FOCUS AUTO/MANU] Focus Switch
[ND FILTER] ND Filter Switch
Use the ND filter to keep the lens aperture in the appropriate range.
OFF, 1/4, 1/16, 1/64
[PUSH AUTO/PUSH LOCK] Focus Push Auto/Push Lock Button
[USER7] Button
It can be assigned with a specific menu function.
[USER8] Button
It can be assigned with a specific menu function.
[IRIS] Iris Auto/Manual Selection Button
[PUSH AUTO] Iris Push Auto Button
[GAIN] Gain Auto/Manual Selection Button / [L/M/H] Sensitivity Selection Switch
[WHT BAL] White Balance Auto/Manual Selection Button / [B/A/PRESET] Selection Switch
[
] One Push Auto White Balance Button
[SHUTTER] Shutter Speed Auto/Manual Selection Button
[FULL AUTO ON/OFF] Full Auto Switch
[MARKER/6] Marker/User 6 Button
This button toggles ON/OFF the marker, safety zone, and center mark displays.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[KEYLOCK ON/OFF] Key Lock Switch
[MODE] Camera/Media Mode Selection Button
EXT.SLOT Lamp
Lights up in green when a media is inserted into EXT.SLOT, and lights up in red when the media is being accessed.
[POWER ON/OFF] Lock Power ON/OFF Switch
Turns ON/OFF the power.
Hold down the lock button (blue) in the center to toggle ON/OFF.
When the power is turning OFF, “P.OFF” appears on the LCD monitor and viewfinder.
Wait for 5 seconds or more to turn on the power again.
POWER/CHARGE LED
STATUS LED
NETWORK LED
[ZEBRA/5] Zebra/User 5 Button
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[AE LOCK/4] AE Lock/User 4 Button
When Gain, Iris, and Shutter are set to “AUTO”, their respective values and the value of white balance are locked when the [AE LOCK/4] button is pressed.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
Cross-Shaped Button (
)/Set Button (
)
The function changes according to the operation status of the camera recorder.
During menu operation (all modes)
Set Button ( ):
Confirms menu items and setting values
Cross-shaped Button ( ):
Selects menu items and setting values
During Camera mode
Shutter operation:
Set Button ( ):
Shutter ON/OFF
Cross-shaped Button ( ):
Switches shutter speed when shutter is ON
Cross-Shaped Button ( ):
AE level operation
[ONLINE/3] Online/User 3 Button
Switches live streaming between ON/OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button. Initial setting: Live streaming
[OIS/2] Optical Image Stabilizer/User 2 Button
For switching the image stabilizer feature mode ON or OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[FOCUS ASSIST/1] Focus Assist/User 1 Button
For switching the focus assist function ON or OFF.
You can also use it as a user button by assigning a specific feature in the menu setting to this button.
[MENU/THUMB] Menu/Thumbnail Button
Displays the menu screen during Camera mode.
Switches between [Main Menu] and [Favorites Menu] when the [MENU/THUMB] button is pressed and held down while the menu screen is displayed.
Displays the menu screen when the button is pressed during thumbnail display in the Media mode.
Stops playback and displays the thumbnail screen when the button is pressed during playback screen display in the Media mode.
[CANCEL] Cancel Button
Cancels various settings and stops playback.
