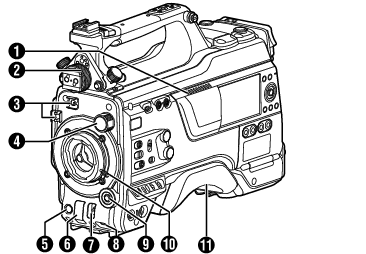

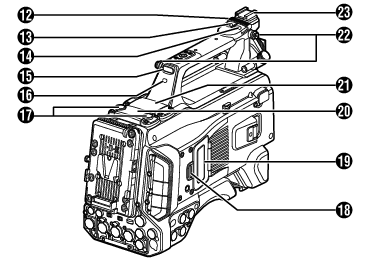

Names of Parts
Speaker
Viewfinder Left-Right Position Lock Ring
For loosening the ring and adjusting the position of the viewfinder to the left or right.
Cable Clamp
[ND FILTER] Switch
Use the ND filter to keep the lens aperture in the appropriate range.
1: CLEAR, 2: 1/4, 3: 1/16, 4: 1/64
It is recommended to use the ND filter to set the lens aperture to less than F8.
[REC] Button
Starts/stops recording.
[SHUTTER] Switch
Push the switch up to turn off the shutter, and push it down to change the shutter speed.
[AWB/USER8] Switch
Push the switch up for it to function as a AWB switch. When the [WHT.BAL PRST/A/B] switch is set to “PRST”, AWB changes the color temperature according to the preset white balance, and applies Auto White Balance when the switch is set to “A” or “B”.
Push the switch down for it to function as a user button. It can be assigned with a specific menu function.
[MIC LEVEL] Knob
For manual adjustment of the recording level for the microphone that is attached to the [MIC IN] terminal when the [AUDIO SELECT CH1/2/3/4]-[MANUAL/AUTO] selection switch is set to “MANUAL” and the [FRONT/REAR/WIRELESS] selection switch is set to “FRONT”.
Cross-shaped (
)/[SET/USER13] Button (
)
For operating the menu and cursor and for confirming a setting, as well as for configuring the settings for time code and user’s bit.
When in the Camera mode (menu is not displayed), pressing the [SET/USER13] button displays the status screen.
When a function is assigned to the cross-shaped button or [SET/USER13] button, it functions as a user button. Initial setting for [USER13]: Status
Lens Lock Lever
Shoulder Pad
Slide Cover (For [USER6]/[USER7] Button)
Sliding the cover over the buttons helps to prevent accidental operation.
[USER6] Button
It can be assigned with a specific menu function.
[USER7] Button
It can be assigned with a specific menu function.
Back Tally Lamp (Handle)
[TALLY] Switch
Wireless LAN Antenna Terminal
SD Card Cover Knob
SD Card Cover
Expansion slot
SSD Media Adapter (sold separately) such as KA-MC100 can be inserted into the slot.
Wireless Audio Receiver Mounting Slot (“UniSlot”)
A “UniSlot” wireless receiver can be attached to this slot.
When removing the cover, avoid losing the screws, etc.
Check the “INSTRUCTIONS” of the wireless receiver.
Shoulder Belt Mount (x2)
For mounting a shoulder belt (sold separately).
Be sure to use a shoulder belt with the strength to withstand the weight of this camera recorder.
If the shoulder belt is not properly attached, the camera recorder may fall and cause injuries.
Check the [INSTRUCTIONS] provided with the shoulder belt before using.
Shoe
For mounting separately sold video lights and accessories.
