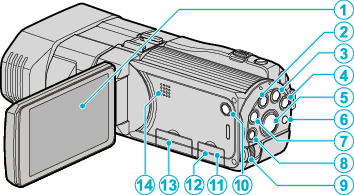

Names of Parts

Interior

LCD Monitor

Turns the power on/off by opening and closing.

Enables self-portraits to be taken by rotating the monitor.

USER Button

(Video/Still Image) Button

Switches between video and still image modes.

i.AUTO Button

Switches between Intelligent Auto and Manual modes.

3D Button

Switches between 3D and 2D modes.

Press and hold until the LED of the button lights up/goes out.

Remote Sensor

INFO (Information) Button

Recording: Displays the remaining time (for video only) and battery power.

Playback: Displays file information such as recording date.

ADJ (Adjustment) Button

Enables adjustment of “FOCUS”, “BRIGHTNESS ADJUST”, etc.

Control Dial

(Power) Button

Press and hold to turn the power on/off while the LCD monitor is opened.

AV Connector

Connects to a TV, etc.

USB Connector

Connects to computer using a USB cable.

SD Card Slot

Insert an optional SD card.

Speaker

Outputs audio sound during video playback.
